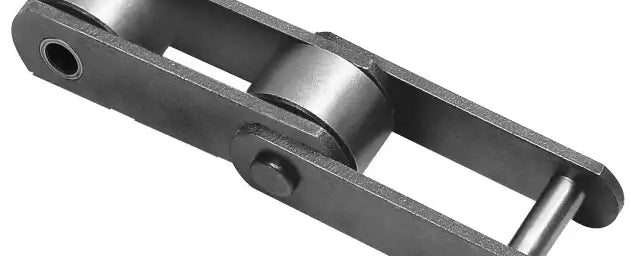

4009 Chain

4009 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 4009-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
4009 Roller Conveyor Chain Connecting Link (Master Link)
4009 Roller Conveyor Chain Connecting Link (Master Link)
Login
4009 Pin
4009 Pin
Login
View full details
Description
Specification
4009 Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This 4009 Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality 4009 sprockets with very short lead-times. For more information or to get a quote on 4009 roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:
4009 Chain
  • Chain #: 4009
  • Pitch: 9.000"
  • Pin End To CL (B): 2.50"
  • Pin Head To CL (C): 2.13"
  • Inside Width (E): 2.19"
  • Roller Diameter (D): 3.00"
  • Roller Width (L): 2.13"
  • Roller Style: T
  • Roller Material: Carbon Case-Hardened
  • Pin Diameter (G): 0.88"
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.38"
  • Sidebar Material: Carbon Heat-Treated
  • Bushing Material: Alloy Case-Hardened
  • Bearing Area: 2.60"
  • Ultimate Strength: 67,000 LBS
  • Maximum Working Load: 9,200 LBS
  • Weight Per Foot: 13.0 LBS

Roller Style: 4009 Chain

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Roller Chain
  • Extremely Durable
  • Heat-Treated or Hardened Component
  • Solid Components
Featured image
  • Chain #: 4009
  • Pitch: 9.000"
  • Pin End To CL (B): 2.50"
  • Pin Head To CL (C): 2.13"
  • Inside Width (E): 2.19"
  • Roller Diameter (D): 3.00"
  • Roller Width (L): 2.13"
  • Roller Style: T
  • Roller Material: Carbon Case-Hardened
  • Pin Diameter (G): 0.88"
  • Sidebar Height (H): 2.50"
  • Sidebar Thickness (T): 0.38"
  • Sidebar Material: Carbon Heat-Treated
  • Bushing Material: Alloy Case-Hardened
  • Bearing Area: 2.60"
  • Ultimate Strength: 67,000 LBS
  • Maximum Working Load: 9,200 LBS
  • Weight Per Foot: 13.0 LBS
