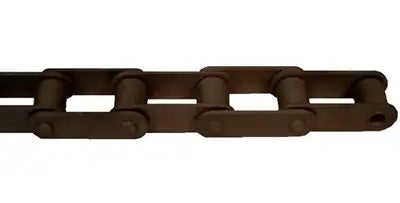

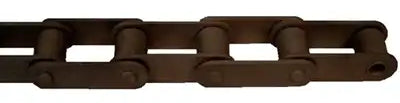

38.4V Roller Chain - Agricultural Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 384V-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
38.4V Roller Chain - Agricultural Chain Features
38.4V Roller Chain - Agricultural Chain Specifications
38.4V roller chain is typically found in agricultural and conveying applications. This chain features solid rollers for increased performance and even load distribution, as well as heat-treated components for increased strength and shock load capability. Besides the chain we can also supply sprockets, bearings, shafting, and more! To get a quote or for more information please contact us and we will be happy to assist you.
38.4V Chain Dimensions
- Pitch (P): 38.40mm
- Roller Diameter (D): 15.88mm
- Dimension (W): 18.00mm
- Pin Diameter (E): 6.92mm
- Pin Length (C): 35.0mm
- Plate Height (H): 17.30mm
- Plate Thickness (T): 3.00mm
- Tensile Strength: 9,441 LBS
- Pitch (P): 38.40mm
- Roller Diameter (D): 15.88mm
- Dimension (W): 18.00mm
- Pin Diameter (E): 6.92mm
- Pin Length (C): 35.0mm
- Plate Height (H): 17.30mm
- Plate Thickness (T): 3.00mm
- Tensile Strength: 9,441 LBS
