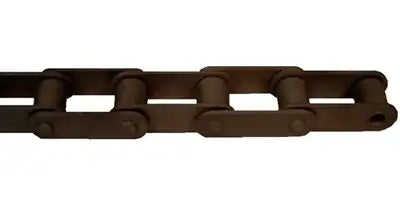

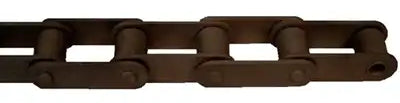

38.4VB Roller Chain - Agricultural Chain

Note: Custom Cut to Length Chain Also Available
SKU: 384VB-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714521006447" , "metafield_value":""}]
38.4VB Roller Chain - Agricultural Chain Features
38.4VB Roller Chain - Agricultural Chain Specifications
38.4VB roller chain is typically found in agricultural and conveying applications. This chain features solid rollers for increased performance and even load distribution, as well as heat-treated components for increased strength and shock load capability. Besides the chain we can also supply sprockets, bearings, shafting, and more! To get a quote or for more information please contact us and we will be happy to assist you.

38.4VB Chain Dimensions

38.4VB Roller Chain - Agricultural Chain
  • Pitch (P): 38.40mm
  • Roller Diameter (D): 15.88mm
  • Dimension (W): 19.05mm
  • Pin Diameter (E): 8.28mm
  • Pin Length (C): 36.1mm
  • Plate Height (H): 20.50mm
  • Plate Thickness (T): 3.00mm
  • Tensile Strength: 11,690 LBS




  • Pitch (P): 38.40mm
  • Roller Diameter (D): 15.88mm
  • Dimension (W): 19.05mm
  • Pin Diameter (E): 8.28mm
  • Pin Length (C): 36.1mm
  • Plate Height (H): 20.50mm
  • Plate Thickness (T): 3.00mm
  • Tensile Strength: 11,690 LBS
