16-Tooth Sprocket for #35 Chain with 1/2" Finished Bore, 35BS16
Note:
Custom Cut to Length Chain Also Available
$12.99
SKU: 35BS16-12-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
16-Tooth Sprocket for #35 Chain with 1/2" Finished Bore, 35BS16 Features
16-Tooth Sprocket for #35 Chain with 1/2" Finished Bore, 35BS16 Specifications

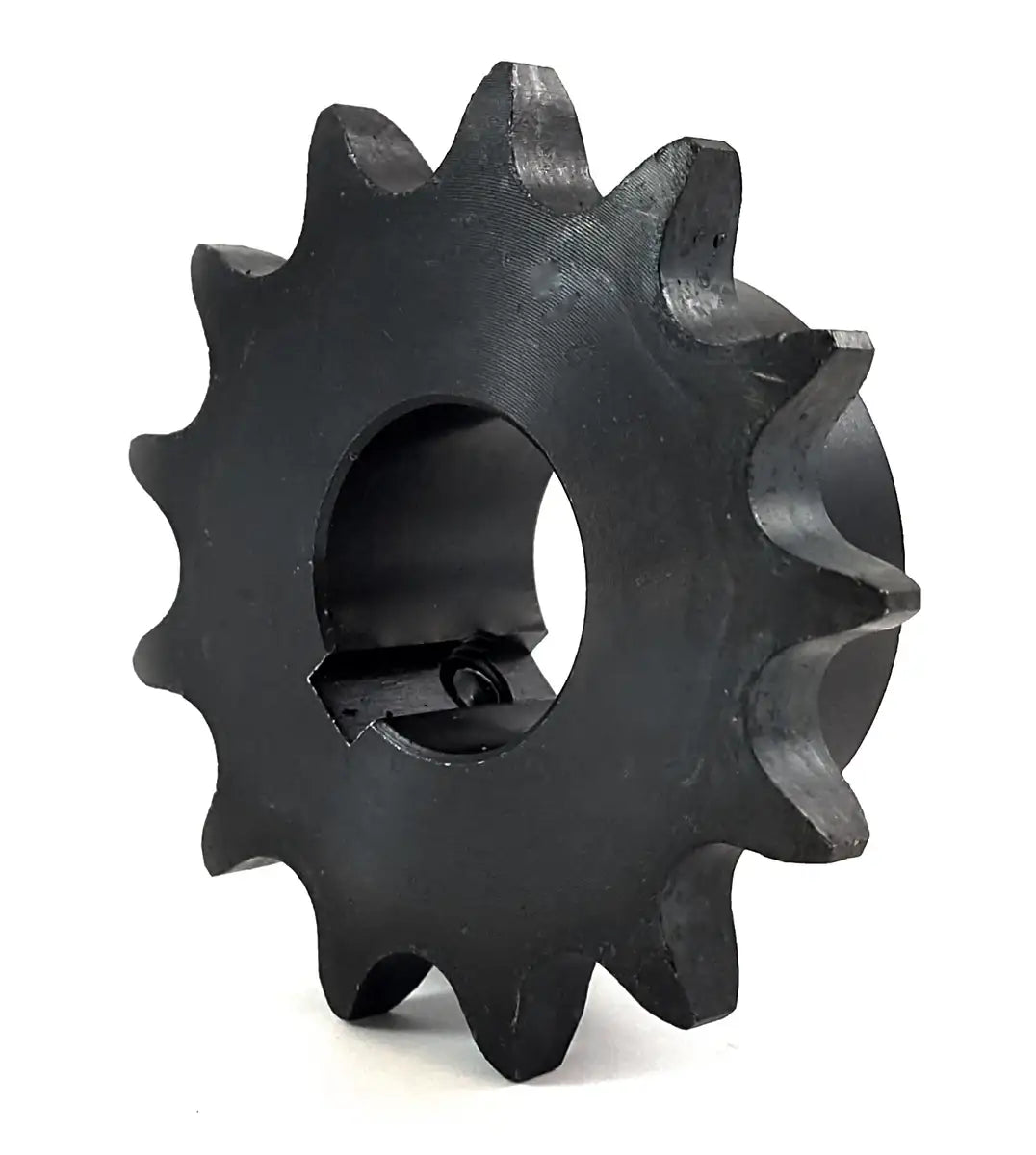

This 35BS16 sprocket features a 1/2" finished bore including a key-way and two setscrews. It is a durable, high quality, and precision sprocket that has hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #35 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. We also offer stock bore sprockets, custom bore and made to order sprockets, and a full line of #35 roller chain. Fore more information, large quantities, or to get a custom sprocket please contact us and we will be happy to assist you.
35BS16 1/2" Finished Bore Sprocket Dimensions
- Sprocket Size: 35BS16
- Tooth Count: 16
- Hub Style: B
- Outside Diameter (O.D): 2.110"
- Bore Size: 1/2"
- Hub Diameter: 1-15/32"
- Length Thru Bore: 3/4"
- Sprocket Weight: 0.35 LBS
- Common Interchanges: 35BS16H, H35BS16, 35BS16-FB
- Sprocket Size: 35BS16
- Tooth Count: 16
- Hub Style: B
- Outside Diameter (O.D): 2.110"
- Bore Size: 1/2"
- Hub Diameter: 1-15/32"
- Length Thru Bore: 3/4"
- Sprocket Weight: 0.35 LBS
- Common Interchanges: 35BS16H, H35BS16, 35BS16-FB
