Power Transmission > Sprockets > Idler Sprockets > Needle Bearing Idler Sprockets

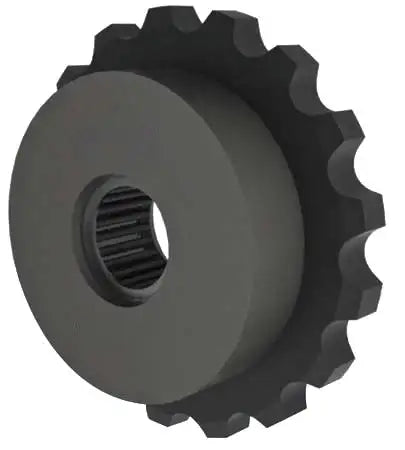

35NB19H Sprocket, Needle Bearing Idler Sprocket - 1" Bore
Note:
Custom Cut to Length Chain Also Available
SKU: 35NB19H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
35NB19H Sprocket, Needle Bearing Idler Sprocket - 1" Bore Features
35NB19H Sprocket, Needle Bearing Idler Sprocket - 1" Bore Specifications
35NB19H sprocket is categorized as a needle bearing idler sprocket due to the needle bearing that is inserted into the sprocket. This 35NB19H idler sprocket features 19 hardened teeth, a high quality needle bearing with a 1" Bore, and fully meets all ANSI Standards. Additionally this 35NB19H idler sprocket was engineered to be extremely durable and high performance, along with being manufactured out of a high quality steel and components to create an idler sprocket with great performance and a long working life. To get a quote on 35NB19H idler sprockets or for more information please contact us and we will be happy to assist you.
35NB19H Idler Sprocket Dimensions
- Sprocket #: 35NB19H
- Number Of Teeth: 19
- Bearing Type: Needle Bearing
- Chain Size: #35
- Outside Diameter: 2.47"
- Bore Size: 1.00"
- Length Thru Bore: 1.00"
- Dimension (T): 0.168"
- Hub Diameter: 1.84"
- Weight: 0.50 LBS
- Sprocket #: 35NB19H
- Number Of Teeth: 19
- Bearing Type: Needle Bearing
- Chain Size: #35
- Outside Diameter: 2.47"
- Bore Size: 1.00"
- Length Thru Bore: 1.00"
- Dimension (T): 0.168"
- Hub Diameter: 1.84"
- Weight: 0.50 LBS
