35NB13H Sprocket, Needle Bearing Idler Sprocket - 1/2" Bore

Name: 35NB13H Sprocket, Needle Bearing Idler Sprocket - 1/2" Bore
Brand: USA ROLLER CHAIN
SKU: 35NB13H-SPROCKET
Availability: InStock

SKU: 35NB13H-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

35NB13H Sprocket, Needle Bearing Idler Sprocket - 1/2" Bore Description/Features

35NB13H Sprocket, Needle Bearing Idler Sprocket - 1/2" Bore Specifications

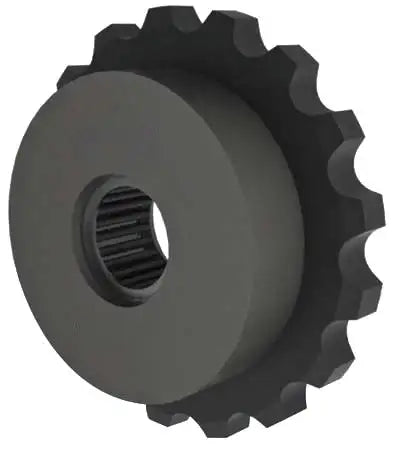

35NB13H sprocket is categorized as a needle bearing idler sprocket due to the needle bearing that is inserted into the sprocket. This 35NB13H idler sprocket features 13 hardened teeth, a high quality needle bearing with a 1/2" Bore, and fully meets all ANSI Standards. Additionally this 35NB13H idler sprocket was engineered to be extremely durable and high performance, along with being manufactured out of a high quality steel and components to create an idler sprocket with great performance and a long working life. To get a quote on 35NB13H idler sprockets or for more information please contact us and we will be happy to assist you.
