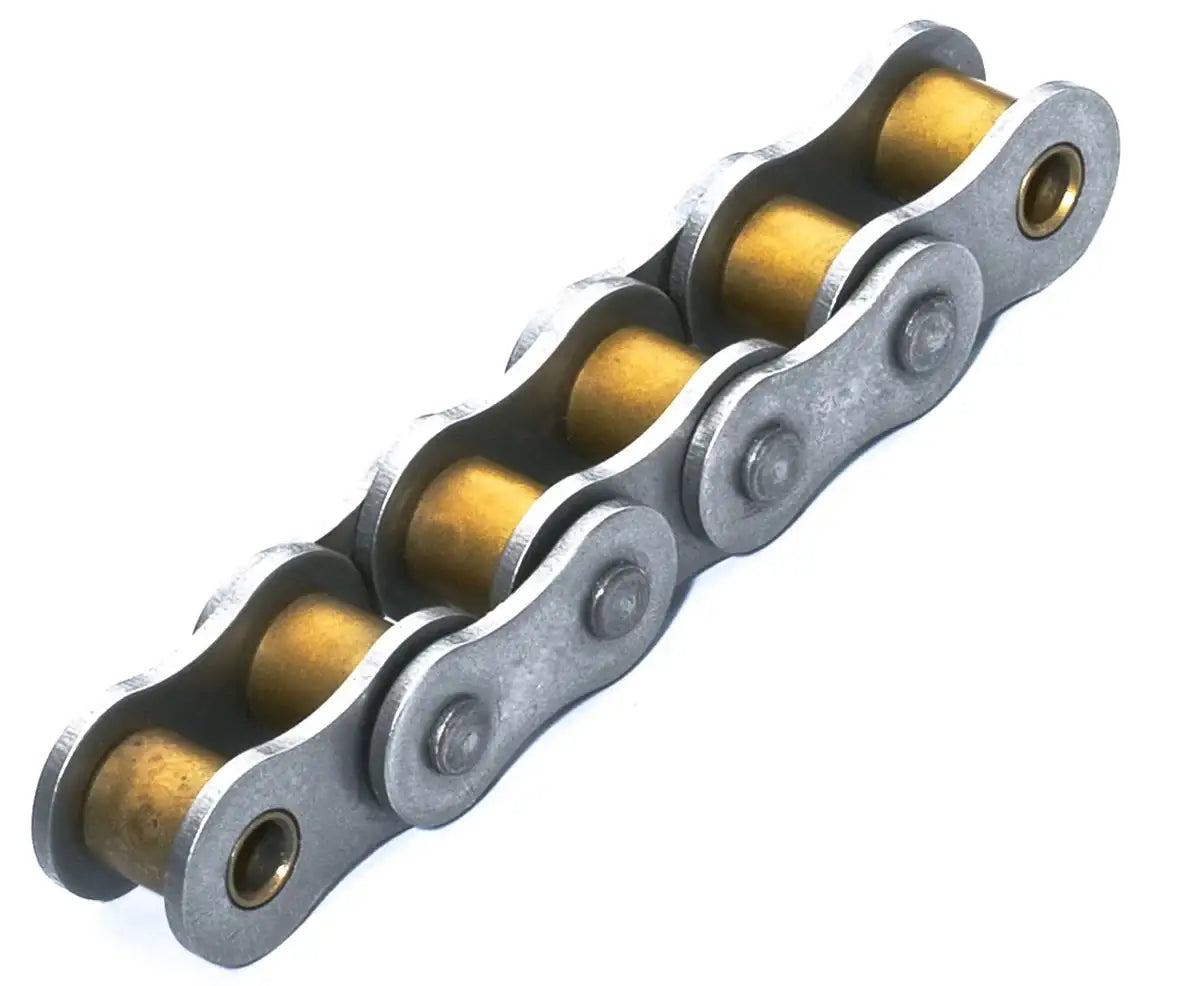

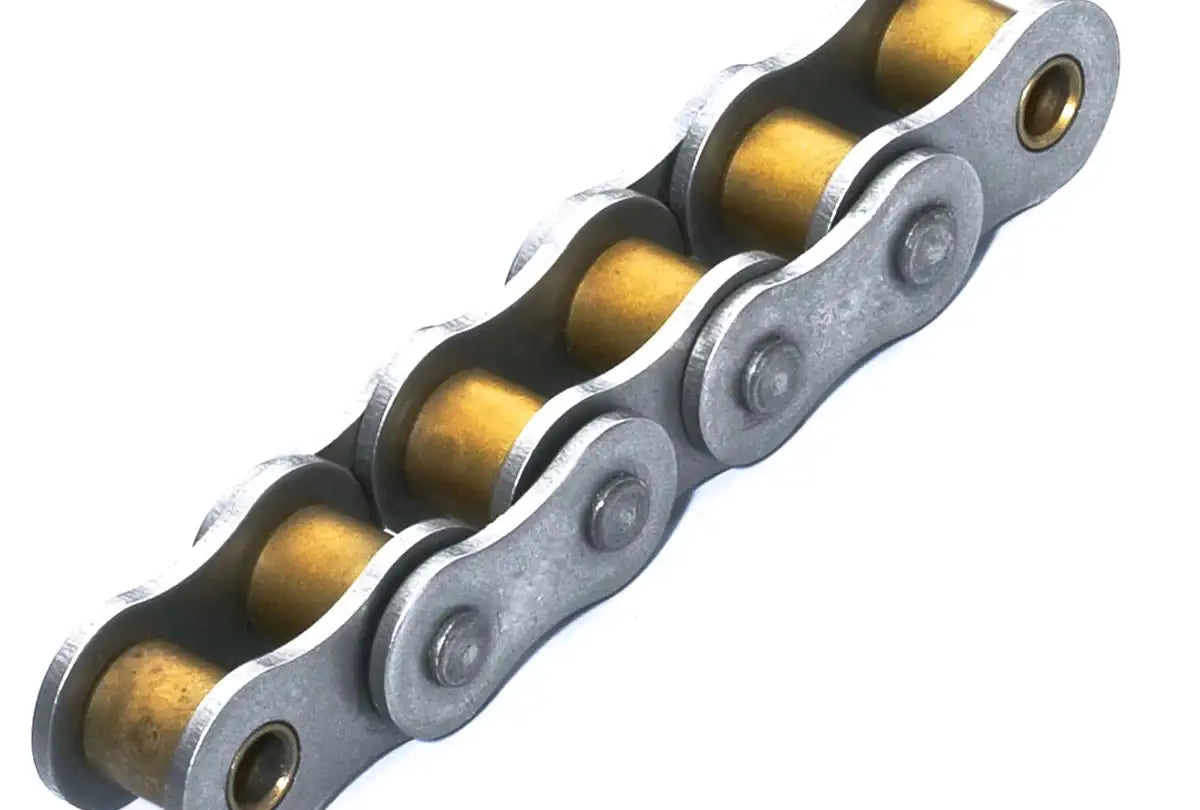

#35 Titanium Roller Chain
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Buy it With:
**Note: we do not currently have a supplier for Titanium Roller Chain**
#35 Titanium roller chain offers ultimate strength, corrosion resistance, and is a non-magnetic premium quality roller chain. Titanium roller chain offers one of the widest temperature ranges in the industry by being able to operate in a temperatures ranging from -20C to +400C making this chain extremely versatile. Something else special about #35 titanium roller chain is its ability to work in environments that are exposed to sulfuric acid, hydrochloric acid, chlorinated water, strong alkalis, and more! We also offer a full line of sprockets for this chain so you can get everything from one place! For more information or to get a quote please contact us and we will be happy to assist you.
Dimensions:
- Chain #: 35 Titanium
- Pitch (P): 0.375"
- Roller Link Width (W): 0.188"
- Bushing Diameter (D): 0.200"
- Pin Diameter (O): 0.141"
- Pin Length (E): 0.472"
- CL Pin Length (F): 0.516"
- Plate Thickness (T): 0.049"
- Plate Height (H): 0.354"
- Weight Per Foot: 0.215 LBS
Email:
See What All We Offer "Here"!
- Chain #: 35 Titanium
- Pitch (P): 0.375"
- Roller Link Width (W): 0.188"
- Bushing Diameter (D): 0.200"
- Pin Diameter (O): 0.141"
- Pin Length (E): 0.472"
- CL Pin Length (F): 0.516"
- Plate Thickness (T): 0.049"
- Plate Height (H): 0.354"
- Weight Per Foot: 0.215 LBS
