34X126 Single Shackle | Round Link Single Bolt Shackle
Note:
Custom Cut to Length Chain Also Available
SKU: 34X126-SGL-SHACKLE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
34X126 Single Shackle | Round Link Single Bolt Shackle Features
34X126 Single Shackle | Round Link Single Bolt Shackle Specifications
Our 34X126 single bolt shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific single bolt shackle is particularly made for a 34X126 round link chain and has a bolt hole of 1.42". It is important to note that when installing a 34X126 single bolt shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 34X126 single bolt shackles, contact our customer support team, and we will gladly assist you!

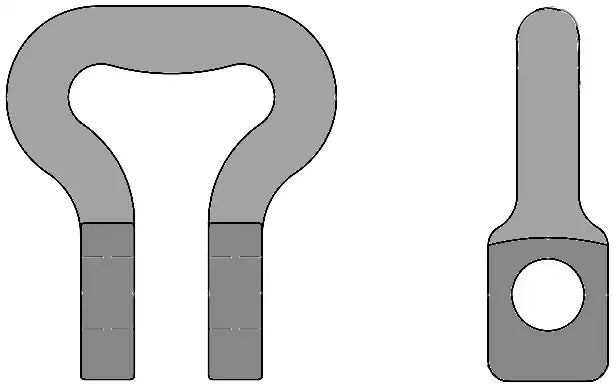

34X126 Single Bolt Shackle Dimensions
- Chain Size: 34X126
- Dimension (A-Bolt): 1.42"
- Dimension (B): 4.33"
- Dimension (C): 1.38"
- Dimension (D): 2.56"
- Weight: 10.57 LBS
- Chain Size: 34X126
- Dimension (A-Bolt): 1.42"
- Dimension (B): 4.33"
- Dimension (C): 1.38"
- Dimension (D): 2.56"
- Weight: 10.57 LBS
