32C76 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: 32C76-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
32C76 Sprocket Features
32C76 Sprocket Specifications

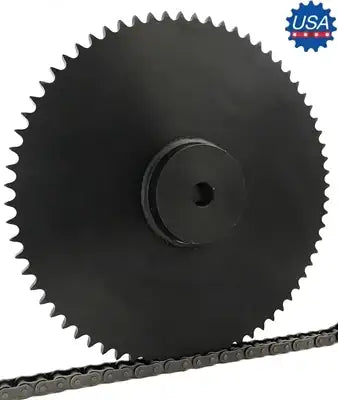

This 32C76 sprocket is a durable, high quality, and precision sprocket with 76 teeth. Something that is notable about this 32C76 sprocket is that it fully meets all ISO Standards, which ensures proper contact between the 32B-1 roller chain and sprocket thus preventing premature wear or breakage. The standard stock bore for a 32C76 sprocket is 40 millimeters and has no key-way or set screws. We supply 32C76 sprockets with a finished bore configuration in any bore sizes needed with a key-way and set screws from our in-house machine shop facility. For more information or to get a quote please contact us and we will be happy to assist you.
32C76 Sprocket Dimensions
- Size: 32C76
- Tooth Count: 76
- Pitch Diameter: 1229.28mm
- Stock Bore: 40mm
- Maximum Recommended Bore: 139mm
- Hub Diameter: 203mm
- Length Thru Bore (LTB): 152mm
- Sprocket Weight: 297.99 kg
- Size: 32C76
- Tooth Count: 76
- Pitch Diameter: 1229.28mm
- Stock Bore: 40mm
- Maximum Recommended Bore: 139mm
- Hub Diameter: 203mm
- Length Thru Bore (LTB): 152mm
- Sprocket Weight: 297.99 kg
