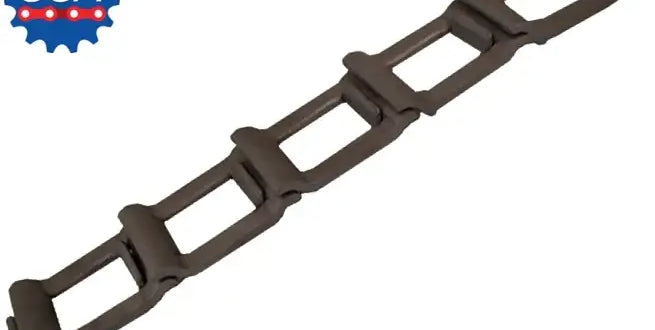

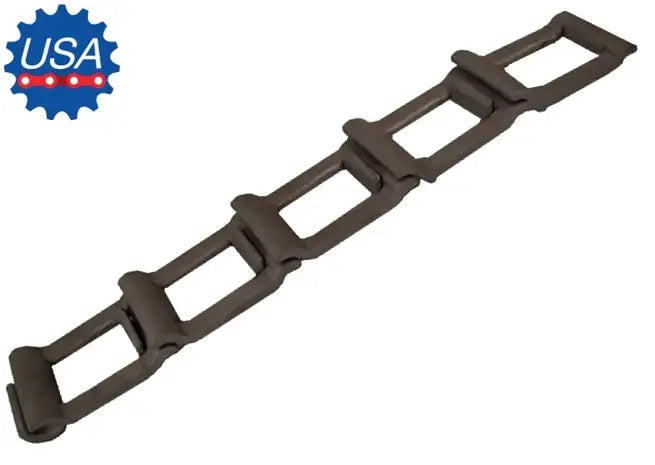

USA #32 Steel Detachable Chain 10ft Coil - SDC 32 Chain

This 32 steel detachable chain is manufactured from a special hot-rolled strip steel that is heat-treated for increased strength and a longer wear life. The steel detachable chains that we supply are typically supplied as 10ft coils and can come as a painted or non-painted configuration. Size 32 steel detachable chain is manufactured for moderate loads and speeds, it is also extremely easy to replace and repair. When installing and using detachable chain it is important that the closed end of the tab should always be towards the sprocket. Besides of the chain we can also supply detachable chain sprockets, attachments, shafting, bearings, and much more! For more information or to get pricing and availability please contact us and we will be happy to assist you.

32 Steel Detachable chain Dimensions

• Pitch (P): 1.157"
• Dimension (M): 0.938"
• Dimension (E): 0.610"
• Dimension (D): 0.594"
• Dimension (T): 0.090"
• Average Ultimate Strength: 1,650 LBS
• Links Per 10ft: 104 LBS
• Weight Per 10ft: 3.2 LBS
• Tolerance on Thickness: +/- 0.006"
• Common Interchanges: SDC32, SDC-32, NO. 32, #32, 32SDC

32 Steel Detachable Chain Disassembly

Dis assembling and assembling 32 steel detachable chain is extremely easy unless the chain is frozen or extensively rusted. For extreme cases use our Steel Detachable Chain Breaker for assistance.

Step 1:

Pick a spot to do the disassembly and release any tension and tensioning devices on the equipment, it is recommended that the chain is straight for easiest dis-assembly.

Step 2:

Rotate chain to required position to allow for the barrel it to easily slide freely out of the hook portion of the chain.

Step 3:

Once the right position is reached it should be easy to dis-assemble the chain by simply sliding the barrel out and off to the side.

Results:

Your steel detachable chain should ow be dis assembled and ready to be adjusted or taken off the equipment.
