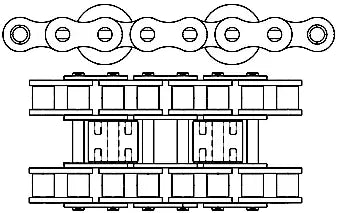

317T Accumulator Chain - Type E

317T accumulator chain is a type E accumulator chain. 317T chains are designed for applications where the product must be conveyed, accumulated, accelerated, and separated gently. Our high-quality 317T-ACU accumulator chain provides clients with a performance, precision, and reliable chain product that is second to none. As a genuine tier-one accumulator conveyor chain, we utilize the best quality raw materials, precision-formed components, and proprietary processes to improve wear life, durability, and performance. In addition, we supply 317T chains with options like stainless or polymer rollers, side-flexing, and maintenance-free or snap-in "clip" protectors for preventing materials from falling through the chain. Furthermore, our 317T accumulator roller chain interchanges with other brands, meaning that no guides or sprockets need to be changed when replacing an existing chain. However, we also supply sprockets and accumulator chain guides. For additional information or to get a quote on the 317T accumulator chain, contact our customer support team, and we will be happy to assist you!

317T Accumulator Chain Dimensions

• Chain Part #: 317T-ACU
• Pitch (P): 31.75mm
• Type: E
• Dimension (d1): 19.05mm
• Dimension (D): 45.00mm
• Dimension (lg): 35.10mm
• Dimension (b1): 19.56mm
• Dimension (b6): 116.10mm
• Dimension (Pt): 36.45mm

Accumulator Chain Options

Chain Clips:

These clips are designed to improve the accumulator chain's safety while preventing articles from falling through the chain.
Self-Lubricating/ Maintenance Free:

A self-lubricating accumulator chain will typically utilize a unique pin, bushing, or both that are impregnated with oil. These unique components release minute amounts of oil as the chain is in operation and are ideal in applications where lubrication is difficult or when conveying sensitive materials that can't come into contact with chain oil.
Guide Plates:

These guide plates are available in various spacing options and design options in both carbon and stainless steel material options.
Material Options:

We supply accumulator chains in stainless steel or carbon steel materials; either option is available with plastic rollers.
Accumulator Chain Guide:

Chain guides are utilized for a reduction in chain wear and system friction.
Accumulator Chain Sprockets:

We supply an array of accumulator chain sprockets with different tooth counts, hub configurations, and bore ranges.
