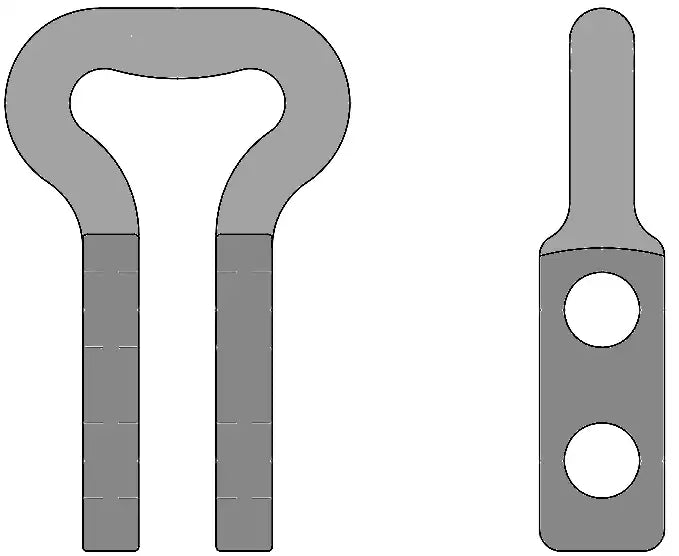

30X108 Double Shackle | Round Link Double Bolt Shackle
Note:
Custom Cut to Length Chain Also Available
SKU: 30X108-DBL-SHACKLE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
30X108 Double Shackle | Round Link Double Bolt Shackle Features
30X108 Double Shackle | Round Link Double Bolt Shackle Specifications
Our 30X108 double bolt shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific double bolt shackle is particularly made for a 30X108 round link chain and has two bolt holes of 1.00". It is important to note that when installing a 30X108 double bolt shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 30X108 double bolt shackles, contact our customer support team, and we will gladly assist you!
30X108 double Bolt Shackle Dimensions
- Chain Size: 30X108
- Dimension (A-Bolt): 1.00"
- Dimension (B): 3.78"
- Dimension (C): 1.26"
- Dimension (D): 2.20"
- Dimension (E): 2.36"
- Weight: 18.74 LBS
- Chain Size: 30X108
- Dimension (A-Bolt): 1.00"
- Dimension (B): 3.78"
- Dimension (C): 1.26"
- Dimension (D): 2.20"
- Dimension (E): 2.36"
- Weight: 18.74 LBS
