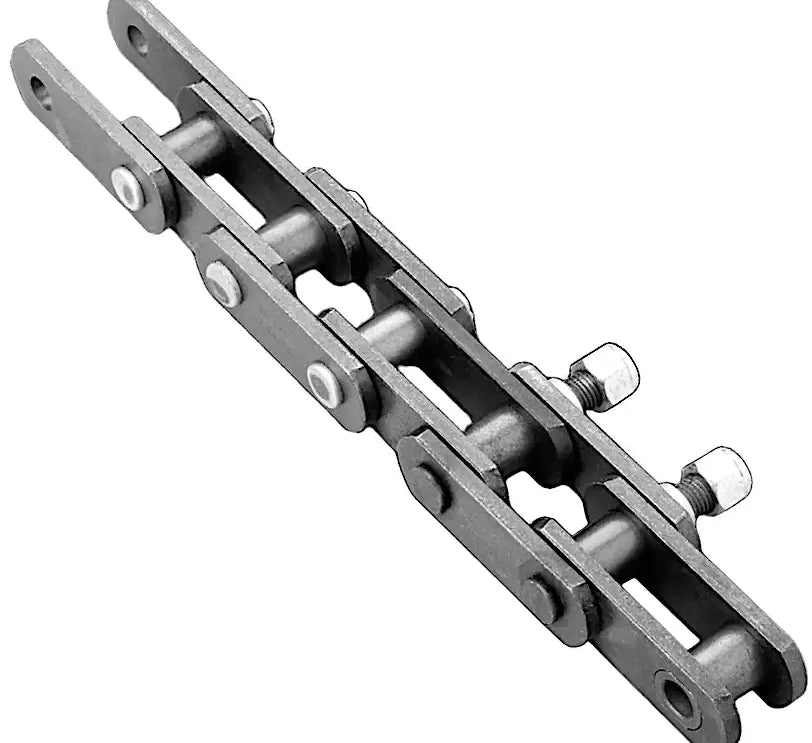

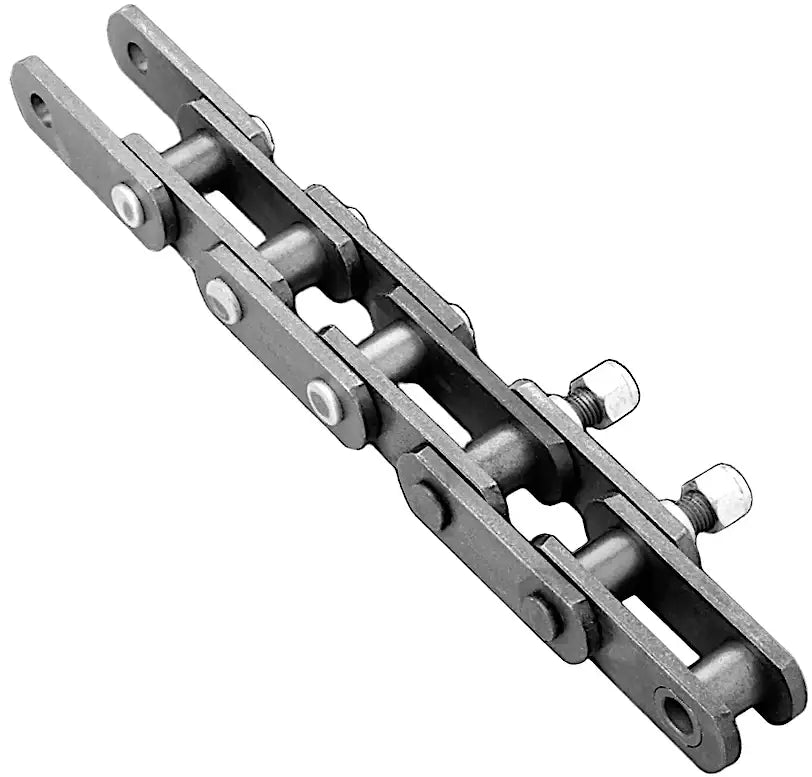

3093 Bridge Conveyor Chain | 3093 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 3093-BRIDGE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
3093 Bridge Conveyor Chain | 3093 Chain Features
3093 Bridge Conveyor Chain | 3093 Chain Specifications
3093 bridge conveyor chain is a high-strength engineer-class mining chain utilized specifically in bridge conveying applications. Our precision bridge conveyor chains showcase superior performance, reliability, and strength. Manufactured from high-grade steel grades, with specific heat-tret processes done to each component, this 3093 chain is built to operate in some of the most demanding applications in the world. Additionally, our 3093 chain directly interchanges with other brands and manufacturers. Besides the 3093 chain, we also offer 3093 sprockets! For additional information or to get a quote on the 3093 chain, contact our customer service team, and we will be happy to assist you!
3093 chain dimensions
- Chain size: 3093
- Dimension (P): 2.000"
- Dimension (B): 1.250"
- Dimension (C): 1.250"
- Dimension (D): 1.750"
- Dimension (E): 0.250"
- Dimension (F): 0.250"
- Dimension (G): 0.557"
- Dimension (H): 2.813"
- Average Ultimate Strength: 36,000 LBS
- Rated Working Load: 3,900 LBS
- Weight: 5.70 LBS/ FT
- Chain size: 3093
- Dimension (P): 2.000"
- Dimension (B): 1.250"
- Dimension (C): 1.250"
- Dimension (D): 1.750"
- Dimension (E): 0.250"
- Dimension (F): 0.250"
- Dimension (G): 0.557"
- Dimension (H): 2.813"
- Average Ultimate Strength: 36,000 LBS
- Rated Working Load: 3,900 LBS
- Weight: 5.70 LBS/ FT
