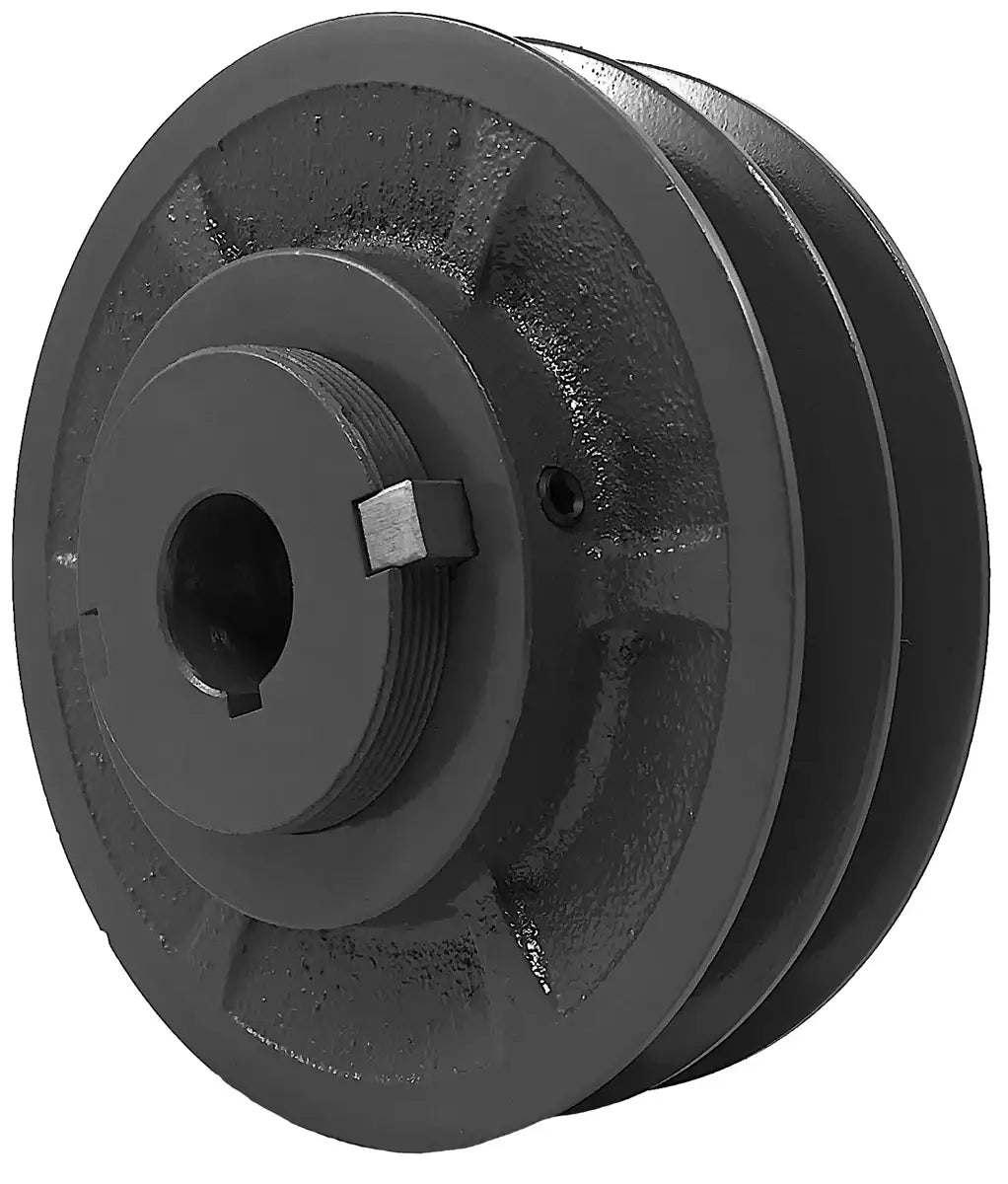

Variable Pitch 2VP65 Pulley 1-3/8"

Variable Pitch 2VP65 Pulley 1-3/8" is designed and engineered in a way that allows for precise adjustments in diameter, which will also correlate to speed adjustment. Our double-groove variable pitch pulleys are manufactured with extremely tight thread tolerances and use a high-quality cast iron material. They are extremely well balanced to reduce vibrations and are phosphated and painted for corrosion resistance. Besides 2VP65 pulleys with a 1-3/8" bore we also stock a full line of high-quality performance 3L, A, 4L, and AX v-belts as well as a full line of industrial power transmission components.

2VP65 Pulley 1-3/8" Dimensions

• Pulley Size: 2VP65
• Bore Size: 1-3/8"
• Keyway Size: 5/16" X 5/32"
• 4L/ A Minimum Datum: 4.7"
• Turns Open: 5
• 4L/ A Maximum Datum: 5.7"
• Turns Open: 0
• Pulley Type: 5
• Outside Diameter: 6.50"
• Dimension (F) Maximum: 2-3/8"
• Dimension (F) Minimum: 1-5/8"
• Dimension (G) Maximum: 1-1/32"
• Dimension (G) Minimum: 21/32"
• Dimension (L): 3-1/4"
• Dimension (K): 1-1/4"
• Pulley Weight: 12.3 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get a formal quote on an 2VP65 variable pitch pulley with 1-3/8" bore and other products please contact us and we will be happy to assist you.
