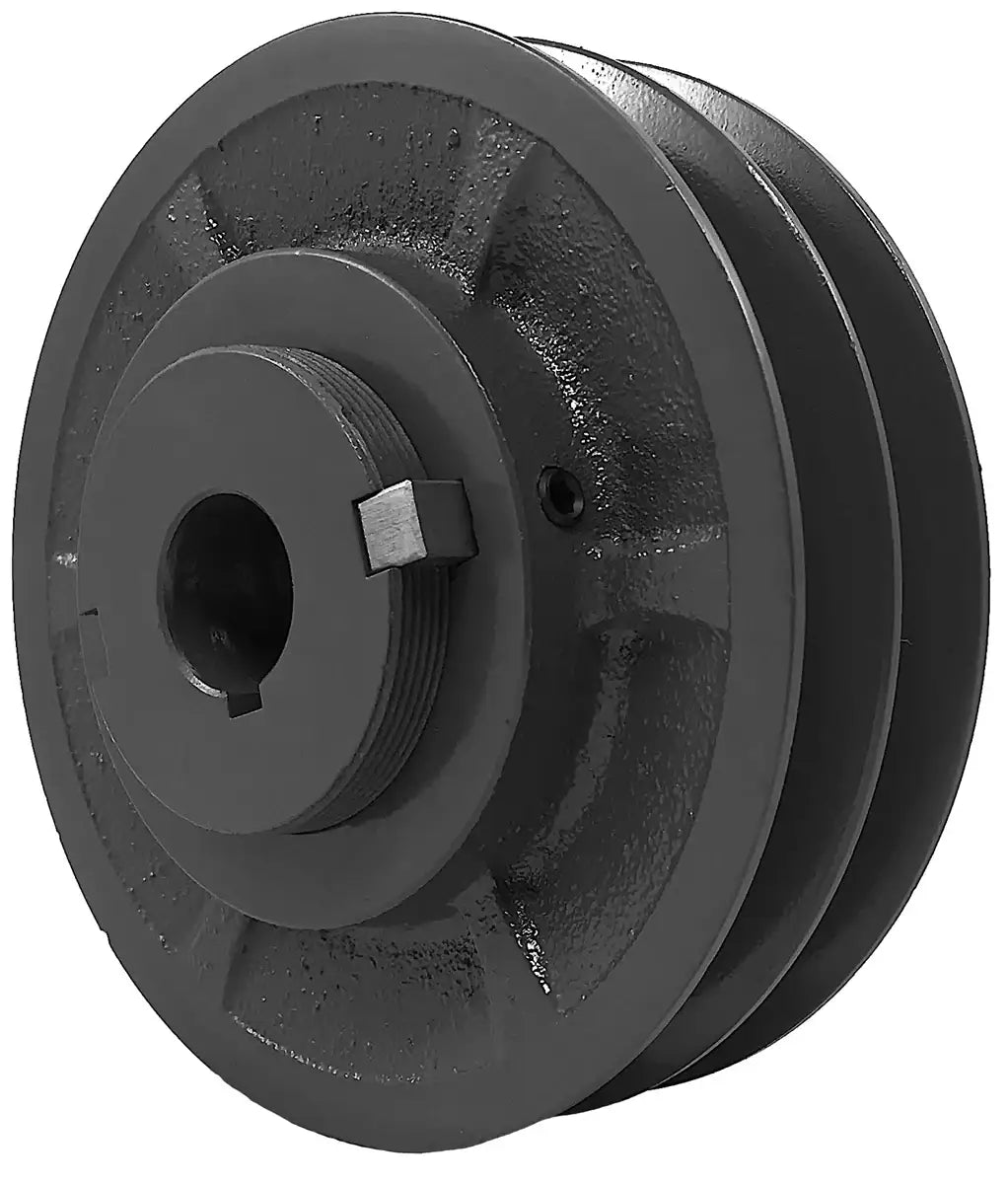

Variable Pitch 2VP62 Pulley 1"

Variable Pitch 2VP62 Pulley 1" is designed and engineered in a way that allows for precise adjustments in diameter, which will also correlate to speed adjustment. Our double-groove variable pitch pulleys are manufactured with extremely tight thread tolerances and use a high-quality cast iron material. They are extremely well balanced to reduce vibrations and are phosphated and painted for corrosion resistance. Besides 2VP62 pulleys with a 1" bore we also stock a full line of high-quality performance 3L, A, 4L, and AX v-belts as well as a full line of industrial power transmission components.

2VP62 Pulley 1" Dimensions

• Pulley Size: 2VP62
• Bore Size: 1"
• Keyway Size: 1/4" X 1/8"
• 3L Minimum Pitch: 4.5"
• Turns Open: 4
• 3L Maximum Pitch: 5.3"
• Turns Open: 0
• 4L/ A Minimum Datum: 4.6"
• Turns Open: 5
• 4L/ A Maximum Datum: 5.6"
• Turns Open: 0
• Pulley Type: 5
• Outside Diameter: 5.95"
• Dimension (F) Maximum: 2-1/8"
• Dimension (F) Minimum: 1-3/8"
• Dimension (G) Maximum: 7/8"
• Dimension (G) Minimum: 1/2"
• Dimension (L): 3"
• Dimension (K): 1-3/16"
• Pulley Weight: 10.0 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get a formal quote on an 2VP62 variable pitch pulley with 1" bore and other products please contact us and we will be happy to assist you.
