Module 3 Plastic Gear Rack (30X30X27) - White POM 250mm
Note:
Custom Cut to Length Chain Also Available
SKU: 29811601-RACK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 3 Plastic Gear Rack (30X30X27) - White POM 250mm Features
Module 3 Plastic Gear Rack (30X30X27) - White POM 250mm Specifications

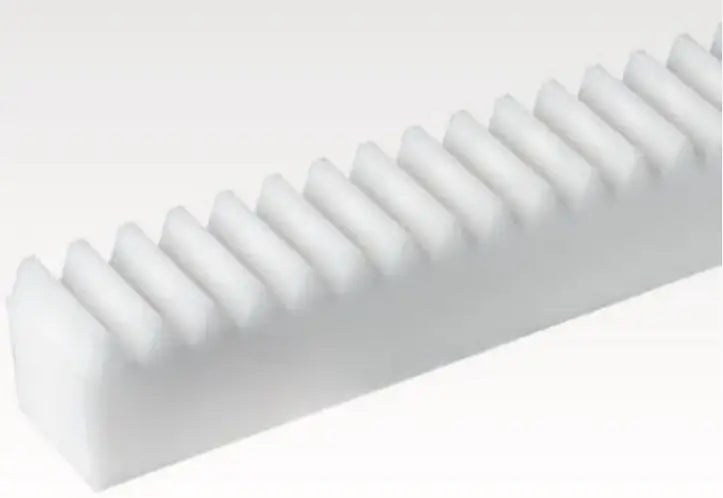

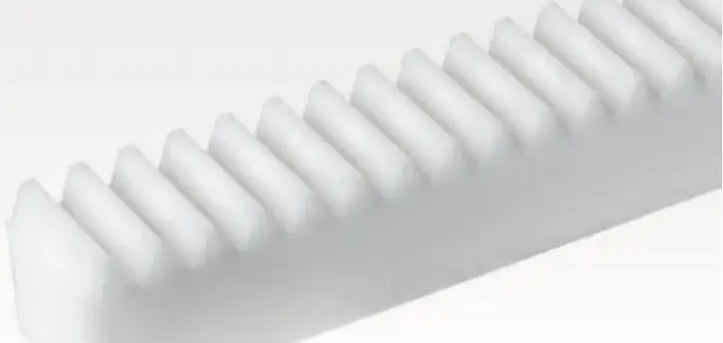

Module 3 plastic gear rack is white in color and manufactured from high-quality white natural POM material. Dimensionally, this rack is 30mm X 30mm X 27mm and is 250mm in nominal length. These gear racks are manufactured under DIN 867/ DIN 3972 standards with a 20-degree pressure angle straight tooth system. Material-wise, the white POM can be used in food grade, abrasive, and scientific applications; however, the gear rack will not be straightened. We also supply a range of matching spur gears and a mounting aid for continuous lengths. For more information or to get a quote on our premium module 3 plastic gear rack, contact our customer support team, and we will be happy to assist you!
Module 3 White Plastic Gear Rack Dimensions
- Part #: 29811601
- Module:3
- Dimension (b): 30mm
- Dimension (H): 30mm
- Dimension (h): 27.0mm
- Length (L): 250mm
- Weight: 400 Grams
- Part #: 29811601
- Module:3
- Dimension (b): 30mm
- Dimension (H): 30mm
- Dimension (h): 27.0mm
- Length (L): 250mm
- Weight: 400 Grams
