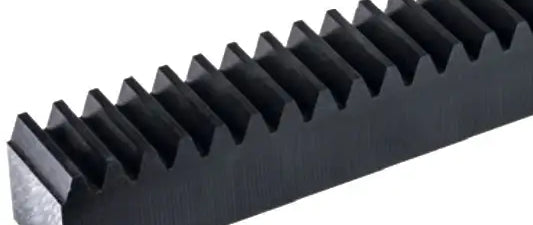

Module 2 Plastic Gear Rack (20X20X18) - Black POM 250mm
Note:
Custom Cut to Length Chain Also Available
SKU: 29611701-RACK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 2 Plastic Gear Rack (20X20X18) - Black POM 250mm Features
Module 2 Plastic Gear Rack (20X20X18) - Black POM 250mm Specifications

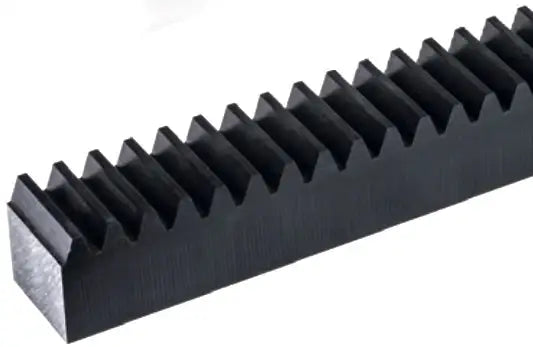

Module 2 plastic gear rack is black in color and manufactured from high-quality POM material. Dimensionally, this rack is 20mm X 20mm X 18mm and is 250mm in nominal length. These gear racks are manufactured under DIN 867/ DIN 3972 standards with a 20-degree pressure angle straight tooth system. Material-wise, the white POM can be used in abrasive and scientific applications; however, the gear rack will not be straightened. We also supply a range of matching spur gears and a mounting aid for continuous lengths. For more information or to get a quote on our premium module 2 plastic gear rack, contact our customer support team, and we will be happy to assist you!
Module 2 White Plastic Gear Rack Dimensions
- Part #: 29611701
- Module:2
- Dimension (b): 20mm
- Dimension (H): 20mm
- Dimension (h): 18.0mm
- Length (L): 250mm
- Weight: 127 Grams
- Part #: 29611701
- Module:2
- Dimension (b): 20mm
- Dimension (H): 20mm
- Dimension (h): 18.0mm
- Length (L): 250mm
- Weight: 127 Grams
