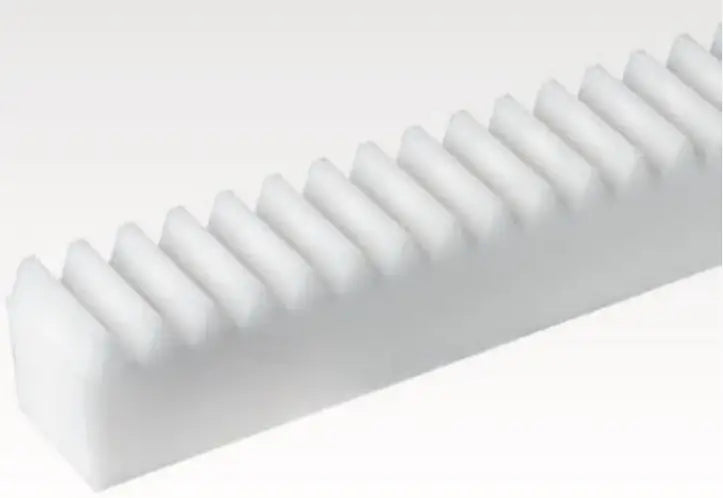

Module 2 Plastic Gear Rack (20X20X18) - White POM 500mm

Module 2 plastic gear rack is white in color and manufactured from high-quality white natural POM material. Dimensionally, this rack is 20mm X 20mm X 18mm and is 500mm in nominal length. These gear racks are manufactured under DIN 867/ DIN 3972 standards with a 20-degree pressure angle straight tooth system. Material-wise, the white POM can be used in food grade, abrasive, and scientific applications; however, the gear rack will not be straightened. We also supply a range of matching spur gears and a mounting aid for continuous lengths. For more information or to get a quote on our premium module 2 plastic gear rack, contact our customer support team, and we will be happy to assist you!

Module 2 White Plastic Gear Rack Dimensions

• Part #: 29611603
• Module:2
• Dimension (b): 20mm
• Dimension (H): 20mm
• Dimension (h): 18.0mm
• Length (L): 500mm
• Weight: 254 Grams
