Module 1.25 Slim Plastic Gear Rack (10X10X8.75) - POM 250mm
SKU: 29460100-RACK
Only 0 left in stockItem is out of stock
Item is unavailable
Module 1.25 Slim Plastic Gear Rack (10X10X8.75) - POM 250mm Features
Module 1.25 Slim Plastic Gear Rack (10X10X8.75) - POM 250mm Specifications

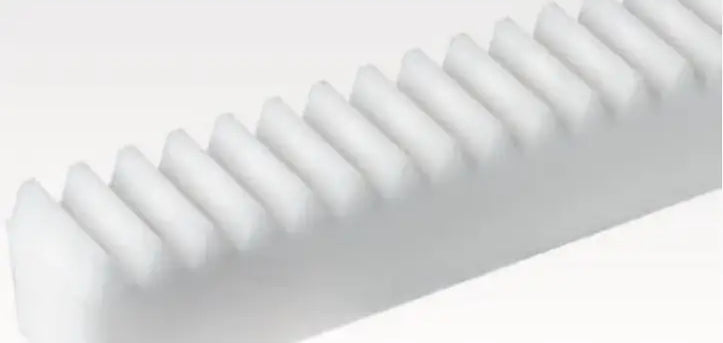

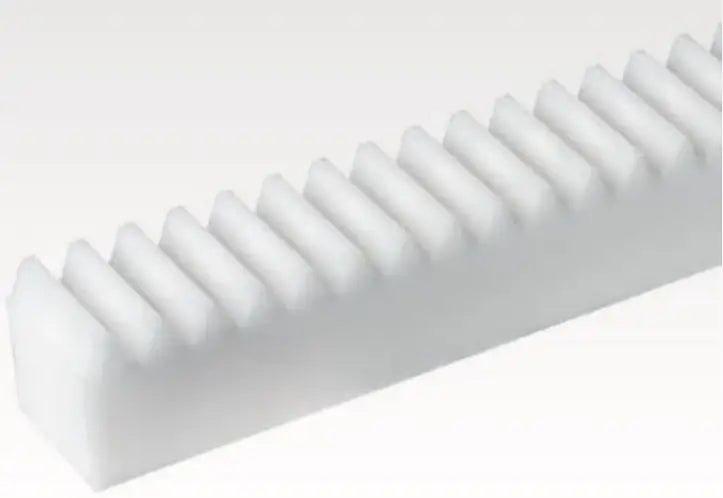

Module 1.25 slim plastic gear rack is a narrow profile rack manufactured from high-quality white natural POM material. Dimensionally, this rack is 10mm X 10mm X 8.75mm and is 250mm in nominal length. These gear racks are manufactured under DIN 867/ DIN 3972 standards with a 20-degree pressure angle straight tooth system. Material-wise, the white POM can be used in food grade, abrasive, and scientific applications; however, the gear rack will not be straightened. We also supply a range of matching spur gears and a mounting aid for continuous lengths. For more information or to get a quote on our premium module 1.25 slim plastic gear rack, contact our customer support team, and we will be happy to assist you!
Module 1.25 Slim Plastic Gear Rack Dimensions
- Part #: 29460100
- Module:1.25
- Dimension (b): 10mm
- Dimension (H): 10mm
- Dimension (h): 8.75mm
- Length (L): 250mm
- Weight: 31 Grams
- Part #: 29460100
- Module:1.25
- Dimension (b): 10mm
- Dimension (H): 10mm
- Dimension (h): 8.75mm
- Length (L): 250mm
- Weight: 31 Grams
