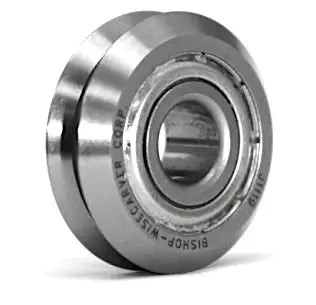

W2SSXH1 Bearing | Food-Grade V-Guide Wheel Roller Bearing

The W2SSXH1 v-guide wheel roller bearing is a modern pharmaceutical grade engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. With a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. W2SSXH1 bearings are made from premium 440C stainless steel and are found in food processing, packaging, and medical applications. The W2SSXH1 bearing features special stainless steel and NBR shield/ seals for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for any pharmaceutical washdown environment conditions. For more information or a quote on W2SSXH1 bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

W2SSXH1 V-Guide Bearing Dimensions

• Part #: W2SSXH1
• Protection: Seal/ Shield
• Wheel Material: 440C Stainless
• Ball Retainer Material: Nylon 6,6
• Shield Material: 300 Stainless Steel
• Seal Material: NBR
• Grease Type: Klubersynth UH1 14-151
• Temperature Range (�F): -22 to +176
• Outside Diameter (D): 1.210"
• Width (W): 0.438"
• Bore Size (B): 0.3750" +0.0000/ - 0.0003"
• Vee Radius Inside (VRI): 0.500"
• Vee Radius Outside (VRO): 0.719"
• Weight (g): 39.0
