MinVee Double Edge Tracks

MinVee Double Edge Tracks

Note: Custom Cut to Length Chain Also Available
Product Code: 2924-TDS0
Shipping calculated at checkout.
Other Customers Viewed
Concentric SWAC0 Studded V-Guide Bearing - Thru-Hole Style
Concentric SWAC0 Studded V-Guide Bearing - Thru-Hole Style
Login
Concentric SWAC0SS227 Studded V-Guide Bearing - Thru-Hole Style
Concentric SWAC0SS227 Studded V-Guide Bearing - Thru-Hole Style
Login
Concentric SWAC0SS300 Studded V-Guide Bearing - Thru-Hole Style
Concentric SWAC0SS300 Studded V-Guide Bearing - Thru-Hole Style
Login
Concentric SWAC0SSX Studded V-Guide Bearing - Thru-Hole Style
Concentric SWAC0SSX Studded V-Guide Bearing - Thru-Hole Style
Login
Concentric SWAC0X Studded V-Guide Bearing - Thru-Hole Style
Concentric SWAC0X Studded V-Guide Bearing - Thru-Hole Style
Login
Eccentric SWAE0 Studded V-Guide Bearing - Thru-Hole Style
Eccentric SWAE0 Studded V-Guide Bearing - Thru-Hole Style
Login
Eccentric SWAE0SS227 Studded V-Guide Bearing - Thru-Hole Style
Eccentric SWAE0SS227 Studded V-Guide Bearing - Thru-Hole Style
Login
Eccentric SWAE0SS300 Studded V-Guide Bearing - Thru-Hole Style
Eccentric SWAE0SS300 Studded V-Guide Bearing - Thru-Hole Style
Login
Eccentric SWAE0SSX Studded V-Guide Bearing - Thru-Hole Style
Eccentric SWAE0SSX Studded V-Guide Bearing - Thru-Hole Style
Login
Concentric SWIC0P Studded V-Guide Bearing - Polymer
Concentric SWIC0P Studded V-Guide Bearing - Polymer
Login
Eccentric SWIE0P Studded V-Guide Bearing - Polymer
Eccentric SWIE0P Studded V-Guide Bearing - Polymer
Login
Concentric SWSC0 Studded V-Guide Wheel Bearing
Concentric SWSC0 Studded V-Guide Wheel Bearing
Login
Concentric SWSC0HA Studded V-Guide Bearing With End Hex
Concentric SWSC0HA Studded V-Guide Bearing With End Hex
Login
Concentric SWSC0SS227 Studded V-Guide Wheel Bearing
Concentric SWSC0SS227 Studded V-Guide Wheel Bearing
Login
Concentric SWSC0SS227HA Studded V-Guide Bearing With End Hex
Concentric SWSC0SS227HA Studded V-Guide Bearing With End Hex
Login
Concentric SWSC0SS300 Studded V-Guide Wheel Bearing
Concentric SWSC0SS300 Studded V-Guide Wheel Bearing
Login
Concentric SWSC0SS300HA Studded V-Guide Bearing With End Hex
Concentric SWSC0SS300HA Studded V-Guide Bearing With End Hex
Login
Concentric SWSC0SSX Studded V-Guide Wheel Bearing
Concentric SWSC0SSX Studded V-Guide Wheel Bearing
Login
Concentric SWSC0SSXHA Studded V-Guide Bearing With End Hex
Concentric SWSC0SSXHA Studded V-Guide Bearing With End Hex
Login
Eccentric SWSE0 Studded V-Guide Wheel Bearing
Eccentric SWSE0 Studded V-Guide Wheel Bearing
Login
Eccentric SWSE0HA Studded V-Guide Bearing With End Hex
Eccentric SWSE0HA Studded V-Guide Bearing With End Hex
Login
Eccentric SWSE0SS227 Studded V-Guide Wheel Bearing
Eccentric SWSE0SS227 Studded V-Guide Wheel Bearing
Login
Eccentric SWSE0SS227HA Studded V-Guide Bearing With End Hex
Eccentric SWSE0SS227HA Studded V-Guide Bearing With End Hex
Login
Eccentric SWSE0SS300 Studded V-Guide Wheel Bearing
Eccentric SWSE0SS300 Studded V-Guide Wheel Bearing
Login
Eccentric SWSE0SS300HA Studded V-Guide Bearing With End Hex
Eccentric SWSE0SS300HA Studded V-Guide Bearing With End Hex
Login
Eccentric SWSE0SSX Studded V-Guide Wheel Bearing
Eccentric SWSE0SSX Studded V-Guide Wheel Bearing
Login
Eccentric SWSE0SSXHA Studded V-Guide Bearing With End Hex
Eccentric SWSE0SSXHA Studded V-Guide Bearing With End Hex
Login
Eccentric SWSE0XHA Studded V-Guide Bearing With End Hex
Eccentric SWSE0XHA Studded V-Guide Bearing With End Hex
Login
W0 Bearing | V-Guide Wheel Roller Bearing
W0 Bearing | V-Guide Wheel Roller Bearing
Login
View full details
Description
Specification
MinVee double edge guide tracks are for size 0 v-guide bearings and are manufactured from carbon steel or stainless steel with precision tolerances for optimal performance and longevity. Size 0 MinVee guide tracks are available in a variety of lengths with standard hole spacings. Tracks can also be supplied as soft or induction hardened upon request. For additional information or getting a quote, don't hesitate to contact us, and we will be happy to assist you!

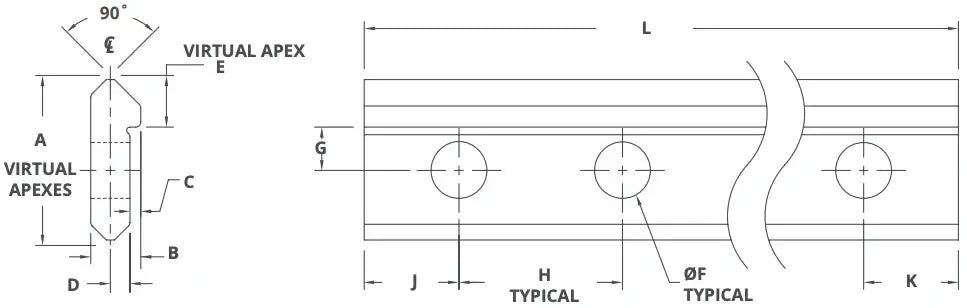

MinVee Guide Track Dimensions

MinVee Double Edge Tracks
  • Size: 0
  • Overall Width (A): 0.516"
  • Overall Height (B): 0.153"
  • Undercut Depth (C): 0.033"
  • Undercut To Vee (D): 0.060"
  • Shoulder To Vee Apex (E): 0.158"
  • Hole Diameter (F): 0.156"
  • Shoulder To Hole (G): 0.138"
  • Hole Spacing (H): 2.000"
  • Hole End Spacing 1 (J): 0.250"
  • Hole End Spacing 2 (K): 0.250"
  • Standard Length And # Of Holes: 6.50" (4-Holes)
  • Standard Length And # Of Holes: 12.50" (7-Holes)
  • Standard Length And # Of Holes: 18.50" (10-Holes)
  • Standard Length And # Of Holes: 24.50" (13-Holes)
  • Standard Length And # Of Holes: 30.50" (16-Holes)
  • Standard Length And # Of Holes: 36.50" (19-Holes)

Feature

  • Swiss Made For Optimal Quality
  • Single Edge Track
  • Polished and Oiled Track Finish
  • Machined To Precision Tolerances
  • Highly Versatile Design
Featured image
  • Size: 0
  • Overall Width (A): 0.516"
  • Overall Height (B): 0.153"
  • Undercut Depth (C): 0.033"
  • Undercut To Vee (D): 0.060"
  • Shoulder To Vee Apex (E): 0.158"
  • Hole Diameter (F): 0.156"
  • Shoulder To Hole (G): 0.138"
  • Hole Spacing (H): 2.000"
  • Hole End Spacing 1 (J): 0.250"
  • Hole End Spacing 2 (K): 0.250"
  • Standard Length And # Of Holes: 6.50" (4-Holes)
  • Standard Length And # Of Holes: 12.50" (7-Holes)
  • Standard Length And # Of Holes: 18.50" (10-Holes)
  • Standard Length And # Of Holes: 24.50" (13-Holes)
  • Standard Length And # Of Holes: 30.50" (16-Holes)
  • Standard Length And # Of Holes: 36.50" (19-Holes)
