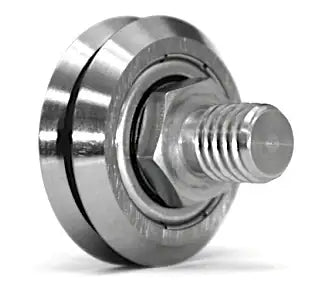

Eccentric SWSEWD3SSX Studded V-Guide Wheel Bearing

The eccentric SWSEWD3SSX studded v-guide wheel roller bearing is a modern washdown grade engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. With a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWSEWD3SSX bearings are made from premium 440C stainless steel and are found in food processing, packaging, and medical applications. The SWSEWD3SSX bearing features special NBR seals for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for any washdown environment conditions. For more information or a quote on SWSEWD3SSX bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWSEWD3SSX Studded V-Guide Bearing Dimensions

• Part #: SWSEWD3SSX
• Wheel Size: 3
• Adjustability: Eccentric
• Eccentric Offset (A): 0.059"
• Eccentric Shoulder Diameter (B): 0.422"
• Eccentric Shoulder Length (C): 0.170"
• Thread (D): M10 X 1.5"
• Thread Length (E): 0.425"
• Overall Length (F): 1.444"
• Wheel Diameter (G): 1.803"
• Journal Length (H): 0.595"
• Hex Thickness (J): 0.224"
• Vee Height (K): 0.537"
• Hex Size (L): 0.750"
• Optional End Hex Size (M): 0.315"
• Protection: Double Seal
• Wheel Material: 440C Stainless
• Ball Retainer Material: Nylon 6,6
• Grease: Klubersynth UH1 14-151
• Temperature Range (�F): -22 to +212
• Seal Material: NBR
