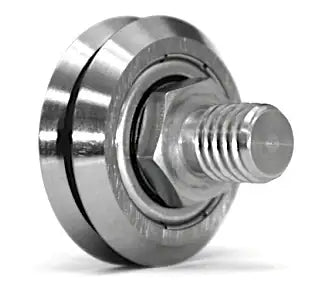

Eccentric SWSE4X Studded V-Guide Wheel Bearing

The eccentric SWSE4X studded v-guide wheel roller bearing is a modern engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. Having a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWSE4X bearings are utilized in automation, woodworking, printing, packaging, and textile applications. The SWSE4X bearing features special stainless steel and NBR shield/ seals for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for general purpose uses and factory floor conditions. For more information or a quote on SWSE4X bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWSE4X Studded V-Guide Bearing Dimensions

• Part #: SWSE4X
• Wheel Size: 4
• Adjustability: Eccentric
• Eccentric Offset (A): 0.079"
• Eccentric Shoulder Diameter (B): 0.500"
• Eccentric Shoulder Length (C): 0.177"
• Thread (D): M12 X 1.75
• Thread Length (E): 0.571"
• Overall Length (F): 1.767"
• Wheel Diameter (G): 2.360"
• Journal Length (H): 0.748"
• Hex Thickness (J): 0.269"
• Vee Height (K): 0.644"
• Hex Size (L): 0.875"
• Optional End Hex Size (M): 0.394"
• Protection: Seal/ Shield
• Wheel Material: 52100 Steel
• Ball Retainer Material: Nylon 6,6
• Grease: Shell Alvania EP2
• Temperature Range (�F): -22 to +212
• Shield Material: 300 Series Stainless
• Seal Material: NBR
