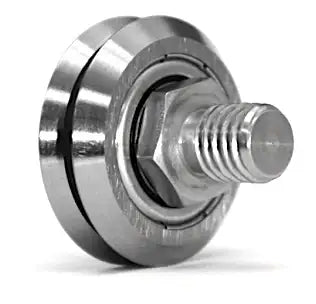

Eccentric SWAEWD3SSX Studded V-Guide Bearing - Thru-Hole Style

The eccentric thru-hole style SWAEWD3SSX studded v-guide wheel roller bearing is a modern washdown grade engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. With a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWAEWD3SSX bearings are made from premium 440C stainless steel and are found in food processing, packaging, and medical applications. The SWAEWD3SSX bearing features special NBR seals for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for any washdown environment conditions. For more information or a quote on SWAEWD3SSX bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWAEWD3SSX Studded V-Guide Bearing Dimensions

• Part #: SWAEWD3SSX
• Wheel Size: 3
• Adjustability: Eccentric
• Journal Diameter (D1): 0.4711"
• Journal Length (E): 1.18"
• Thread Length (F): 0.71"
• Thread (G): M12 X 1.75
• Hex Thickness (H2): 0.137"
• Vee Height (J): 0.450"
• Hex Size (K): 0.748"
• Protection: Double Seal
• Wheel Material: 440C Stainless
• Ball Retainer Material: Nylon 6,6
• Grease: Klubersynth UH1 14-151
• Temperature Range (�F): -22 +212
• Seal Material: NBR
