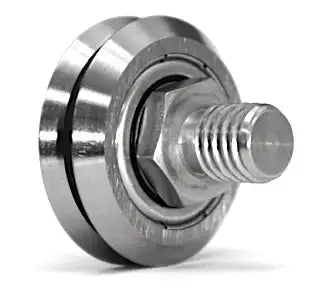

Eccentric SWAE4SS300 Studded V-Guide Bearing - Thru-Hole Style

The eccentric thru-hole style SWAE4SS300 studded v-guide wheel roller bearing is a modern low-temp grade engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. With a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWAE4SS300 bearings are made from premium 440C stainless steel and are found in aerospace, refrigeration, flash-freezing, and corrosive subzero applications. The SWAE4SS300 bearing features special stainless steel shields for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for any low-temperature and corrosive environment applications. For more information or a quote on SWAE4SS300 bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWAE4SS300 Studded V-Guide Bearing Dimensions

• Part #: SWAE4SS300
• Wheel Size: 4
• Adjustability: Eccentric
• Eccentric Offset (A): 0.060"
• Overall Length (B): 2.477"
• Wheel Diameter (C): 2.360"
• Journal Diameter (D1): 0.6284"
• Journal Length (E): 1.58"
• Thread Length (F): 0.95"
• Thread (G): M16 X 2.0
• Hex Thickness (H2): 0.122"
• Vee Height (J): 0.497"
• Hex Size (K): 0.866"
• Protection: Shield
• Wheel Material: 440C Stainless
• Ball Retainer Material: 304 Stainless
• Grease: Kluber Isoflex PDL 300A
• Temperature Range (�F): -94 to +230
• Shield Material: 300 Series Stainless
