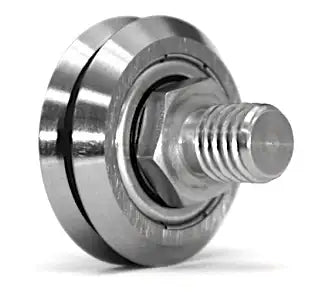

Eccentric SWAE2SSH1 Studded V-Guide Bearing - Thru-Hole Style

The eccentric thru-hole style SWAE2SSH1 studded v-guide wheel roller bearing is a modern pharmaceutical grade engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. With a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWAE2SSH1 bearings are made from premium 440C stainless steel and are found in food processing, packaging, and medical applications. The SWAE2SSH1 bearing features special stainless steel and NBR shield/ seals for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for any pharmaceutical washdown environment conditions. For more information or a quote on SWAE2SSH1 bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWAE2SSH1 Studded V-Guide Bearing Dimensions

• Part #: SWAE2SSH1
• Wheel Size: 2
• Adjustability: Eccentric
• Eccentric Offset (A): 0.038"
• Overall Length (B): 1.54"
• Wheel Diameter (C): 1.210"
• Journal Diameter (D1): 0.3926"
• Journal Length (E): 0.98"
• Thread Length (F): 0.59"
• Thread (G): M10 X 1.5
• Hex Thickness (H2): 0.104"
• Vee Height (J): 0.323"
• Hex Size (K): 0.551"
• Protection: Seal/ Shield
• Wheel Material: 440C Stainless
• Ball Retainer Material: Nylon 6,6
• Grease: Klubersynth UH1 14-151
• Temperature Range (�F): -22 to +176
• Shield Material: 300 Series Stainless
• Seal Material: NBR
