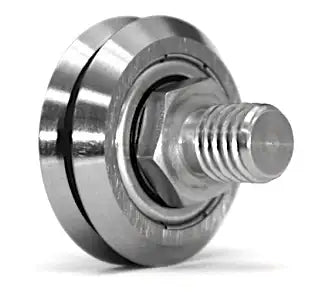

Eccentric SWAE1SSVAC Studded V-Guide Bearing - Thru-Hole Style

The eccentric thru-hole style SWAE1SSVAC studded v-guide wheel roller bearing is a modern vacuum grade engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. Having a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWAE1SSVAC bearings are utilized in material science applications. The SWAE1SSVAC bearing features stainless steel shields for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for any vacuum environment conditions. For more information or a quote on SWAE1SSVAC bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWAE1SSVAC Studded V-Guide Bearing Dimensions

• Part #: SWAE1SSVAC
• Wheel Size: 1
• Adjustability: Eccentric
• Eccentric Offset (A): 0.024"
• Overall Length (B): 1.00"
• Wheel Diameter (C): 0.771"
• Journal Diameter (D1): 0.2352"
• Journal Length (E): 0.59"
• Thread Length (F): 0.35"
• Thread (G): M6 X 1.0
• Hex Thickness (H2): 0.083"
• Vee Height (J): 0.238"
• Hex Size (K): 0.472"
• Protection: Shield
• Wheel Material: 440C Stainless
• Ball Retainer Material: 304 Stainless
• Grease: Lubcon Ultratherm 2000
• Temperature Range (�F): -31 to +482
• Shield Material: 300 Series Stainless
