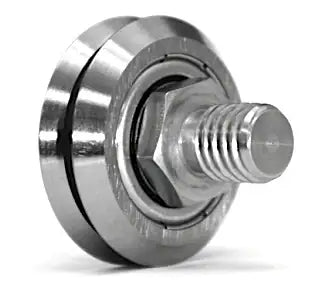

Concentric SWAC3SS227 Studded V-Guide Bearing - Thru-Hole Style

The concentric thru-hole style SWAC3SS227 studded v-guide wheel roller bearing is a modern high-temp grade engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. With a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWAC3SS227 bearings are made from premium 440C stainless steel and are found in welding, bakery, plasma cutters, and oven applications. The SWAC3SS227 bearing features special stainless steel shields for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for any high-temperature and corrosive environment applications. For more information or a quote on SWAC3SS227 bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWAC3SS227 Studded V-Guide Bearing Dimensions

• Part #: SWAC3SS227
• Wheel Size: 3
• Adjustability: Concentric
• Overall Length (B): 1.967"
• Wheel Diameter (C): 1.803"
• Journal Diameter (D1): 0.4711"
• Journal Length (E): 1.18"
• Thread Length (F): 0.71"
• Thread (G): M12 X 1.75
• Hex Thickness (H2): 0.137"
• Vee Height (J): 0.450"
• Hex Size (K): 0.748"
• Protection: Shield
• Wheel Material: 440C Stainless
• Ball Retainer Material: 304 Stainless
• Grease: Krytox GPL227
• Temperature Range (�F): -22 to +500
• Shield Material: 300 Series Stainless
