Guide Track For Size 1 V-Guide Bearing Wheels

Note: Custom Cut to Length Chain Also Available
SKU: 2924-SIZE-1-TRACK
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714453504367" , "metafield_value":""}]
Guide Track For Size 1 V-Guide Bearing Wheels Features
Guide Track For Size 1 V-Guide Bearing Wheels Specifications
Guide track for size 1 v-guide bearings are manufactured from carbon steel or stainless steel and are precision made for optimal performance and longevity. Size 1 guide tracks are available in a variety of lengths with standard hole spacings. Tracks can also be supplied as soft or induction hardened upon request. For additional information or to get a quote, please contact us, and we will be happy to assist you!

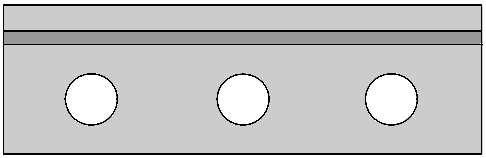

Size 1 Guide Track Dimensions

Guide Track For Size 1 V-Guide Bearing Wheels

  • Track Size: 1
  • Overall Width (A): 0.437"
  • Overall Height (B): 0.187"
  • Undercut Depth (C): 0.062"
  • Undercut To Vee (D): 0.031"
  • Shoulder To Vee Apex (E): 0.125"
  • Hole Diameter (F): 0.156"
  • Shoulder To Hole (G): 0.156"
  • Hole Spacing (H): 2.000"
  • Hole End Spacing 1 (J): 0.250"
  • Hole End Spacing 2 (K): 0.250"
  • Standard Length and # Of Holes: 12.50" (7-Holes)
  • Standard Length and # Of Holes: 24.50" (13-Holes)
  • Standard Length and # Of Holes: 36.50" (19-Holes)
  • Standard Length and # Of Holes: 48.50" (25-Holes)
  • Standard Length and # Of Holes: 60.50" (31-Holes)
  • Standard Length and # Of Holes: 72.50" (37-Holes)
  • Track Size: 1
  • Overall Width (A): 0.437"
  • Overall Height (B): 0.187"
  • Undercut Depth (C): 0.062"
  • Undercut To Vee (D): 0.031"
  • Shoulder To Vee Apex (E): 0.125"
  • Hole Diameter (F): 0.156"
  • Shoulder To Hole (G): 0.156"
  • Hole Spacing (H): 2.000"
  • Hole End Spacing 1 (J): 0.250"
  • Hole End Spacing 2 (K): 0.250"
  • Standard Length and # Of Holes: 12.50" (7-Holes)
  • Standard Length and # Of Holes: 24.50" (13-Holes)
  • Standard Length and # Of Holes: 36.50" (19-Holes)
  • Standard Length and # Of Holes: 48.50" (25-Holes)
  • Standard Length and # Of Holes: 60.50" (31-Holes)
  • Standard Length and # Of Holes: 72.50" (37-Holes)
