MinVee Double Edge Track Supports
Note:
Custom Cut to Length Chain Also Available
SKU: 2924-MV0TS
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
MinVee Double Edge Track Supports Features
MinVee Double Edge Track Supports Specifications
MinVee double-edge track supports are for MinVee guide tracks and are manufactured from carbon steel or stainless steel with precision tolerances for optimal performance and longevity. Size 0 MinVee guide track supports are available in a variety of lengths with standard hole spacings. Track supports can also be supplied as soft or induction hardened upon request. For additional information or getting a quote, don't hesitate to contact us, and we will be happy to assist you!

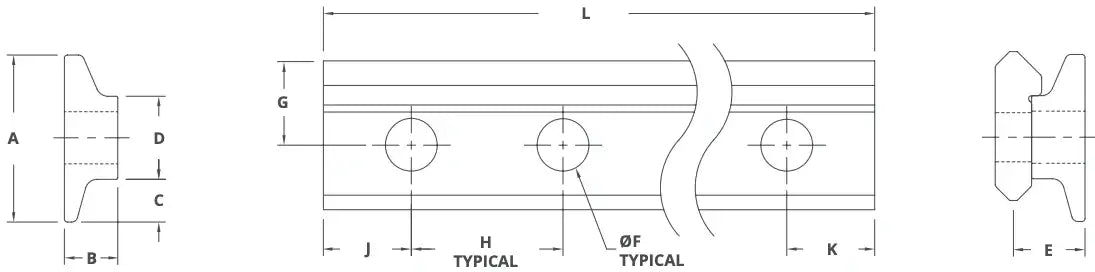

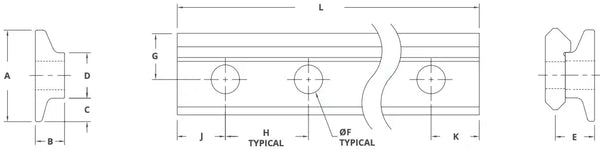

MinVee Track Support Dimensions
- Size: 0
- Overall Width (A): 0.551"
- Overall Height (B): 0.176"
- Surface To Edge (C): 0.141"
- Surface Width (D): 0.274"
- Vee Height (E): 0.236"
- Hole Diameter (F): 0.172"
- Shoulder To Hole (G): 0.273"
- Hole Spacing (H): 2.000"
- Hole End Spacing 1 (J): 0.250"
- Hole End Spacing 2 (K): 0.250"
- Standard Length And # Of Holes: 6.50" (4-Holes)
- Standard Length And # Of Holes: 12.50" (7-Holes)
- Standard Length And # Of Holes: 18.50" (10-Holes)
- Standard Length And # Of Holes: 24.50" (13-Holes)
- Standard Length And # Of Holes: 30.50" (16-Holes)
- Standard Length And # Of Holes: 36.50" (19-Holes)
- Size: 0
- Overall Width (A): 0.551"
- Overall Height (B): 0.176"
- Surface To Edge (C): 0.141"
- Surface Width (D): 0.274"
- Vee Height (E): 0.236"
- Hole Diameter (F): 0.172"
- Shoulder To Hole (G): 0.273"
- Hole Spacing (H): 2.000"
- Hole End Spacing 1 (J): 0.250"
- Hole End Spacing 2 (K): 0.250"
- Standard Length And # Of Holes: 6.50" (4-Holes)
- Standard Length And # Of Holes: 12.50" (7-Holes)
- Standard Length And # Of Holes: 18.50" (10-Holes)
- Standard Length And # Of Holes: 24.50" (13-Holes)
- Standard Length And # Of Holes: 30.50" (16-Holes)
- Standard Length And # Of Holes: 36.50" (19-Holes)
