Eccentric MJX4XLA Journal For Size 4XL Guide Wheel

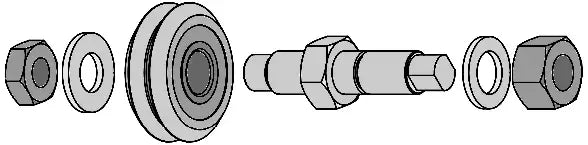

The eccentric MJX4XLA journal is manufactured for size 0 dual-v guide wheel bearings and is a component for mounting purposes. This MJX4XLA journal utilizes precision mounting diameter tolerances of +0.000"/ -0.002" and is supplied with mounting nuts and washers. The journal material its self is 303 stainless along with the washers, and the nuts are Nylon locking zinc plated carbon steel for long term durability in any application. Contact our customer support team for additional information or to get a quote on eccentric MJX4XLA journals, and we will be happy to assist you!

MJX4XLA Journal Dimensions

• Part #: MJX4XLA
• For Wheel size: 4XL
• Adjustability: Eccentric
• Eccentric Offset (A): 0.060"
• Overall Length (B): 4.070"
• Wheel Mounting Diameter (C): 0.8657"
• Journal Mounting Diameter (D): 0.750"
• Journal Length (E): 2.045"
• Wheel Mount Thread (F): 3/4-16
• Wheel Mount Thread (G): 3/4-16
• Hex Thickness (H): 0.565"
• Vee Height (J): 0.940"
• Hex Size (K): 1.250"
• Wrench Flats (L): 0.437"
• Min. Mounting Plate Thickness: 0.750"
• Max. Mounting Plate Thickness: 1.125"
