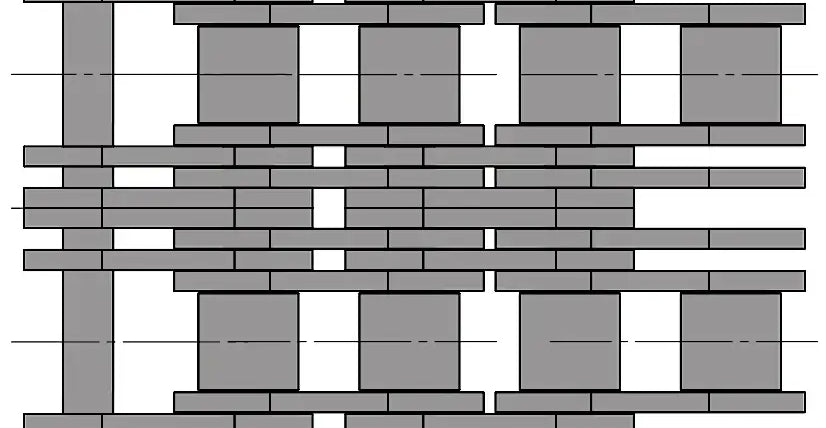

28B Quad Capacity Roller Chain | 28B-QC Chain

28B quad-capacity roller chain is designed with four times the respective amount of link plates as a standard chain. This unique design combines the benefits of leaf chain and roller chain into one unique chain capable of achieving tensile strengths higher than other chain types on the market. Our 28BQC quad capacity chain is also manufactured using precision heat-treated and shot-peened components machined from top grades of alloy and carbon steels. We also supply our 28B quad-capacity roller chains with solid bushings and solid rollers, drastically improving the performance and longevity of the chain. Due to the unique design, the 28BQC roller chain requires a special sprocket design, any sprockets used for this chain must have hardened teeth! We also supply sprockets for 28B quad-capacity roller chains. For additional information or to get a quote on our premium 28B quad-capacity roller chains, contact our customer support team, and we will be happy to assist you!

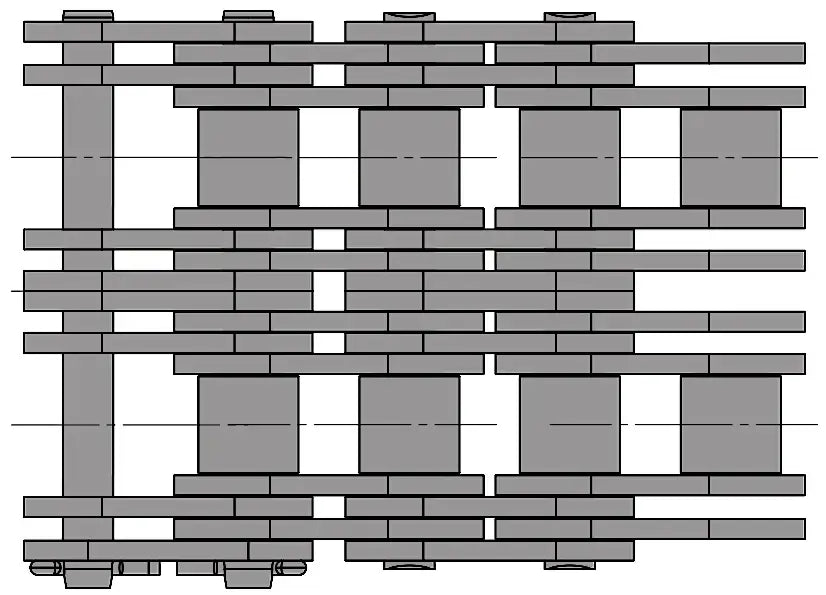

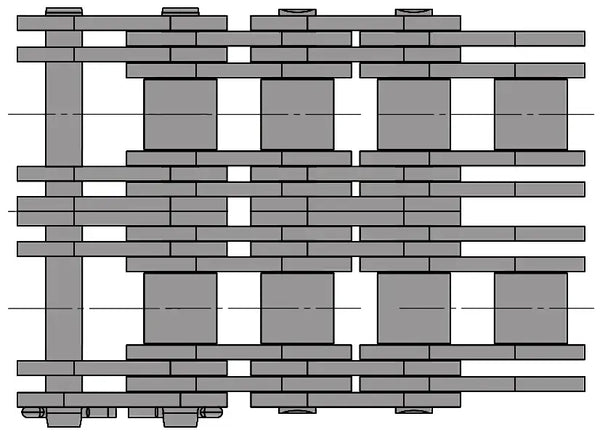

28B Quad-Capacity Chain Dimensions

• Chain Size: 28BQC
• Pitch (P): 1.750"
• Inside Width (W): 1.220"
• Roller Diameter (R): 1.100"
• Pin Diameter (D): 0.500"
• Plate Height (H): 1.610"
• Plate Thickness (To): 0.291"
• Plate Thickness (Ti): 0.248"
• Transverse Pitch (QC): 3.339"
• Average Ultimate Strength: 200,980 LBS
