Power Transmission > Gears and Gear Racks > Plastic Gear Racks

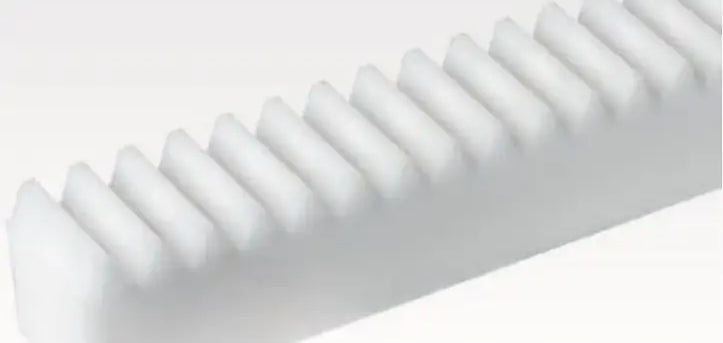

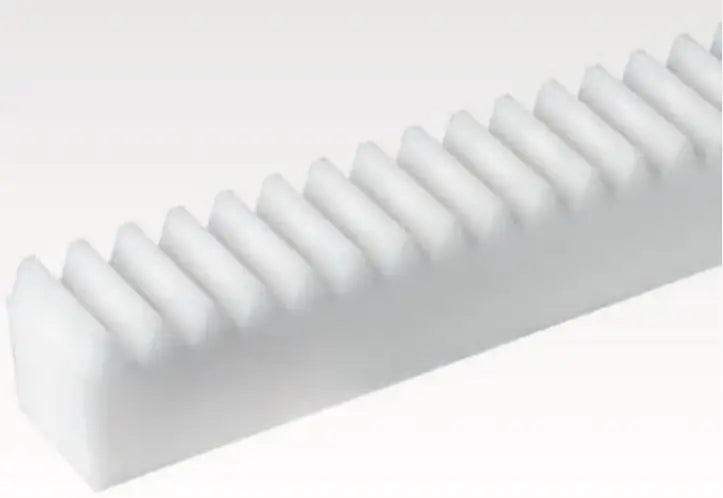

Module 2.5 Plastic Gear Rack (17X13X10.5) - Polyacetal 250mm
Note:
Custom Cut to Length Chain Also Available
SKU: 28760100-RACK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 2.5 Plastic Gear Rack (17X13X10.5) - Polyacetal 250mm Features
Module 2.5 Plastic Gear Rack (17X13X10.5) - Polyacetal 250mm Specifications
Our module 2.5 plastic gear rack is dimensionally manufactured per DIN 867/ DIN 3972 standards 17mm X 13mm X 10.5mm, is made from high-quality polyacetal material, and has a nominal length of 250mm. These gear racks are easily mounted in continuous lengths, especially with the use of our gear rack mounting aid! Polyacetal is a natural white plastic that offers a high hardness and resistance to corrosion; the material can also be used in food-grade or medical applications. Module 2.5 metric plastic gear racks feature a 20-degree pressure angle straight tooth design; we also supply the accompanying plastic spur gears! For additional information or to get a quote on our plastic gear racks or gears, contact our customer service team, and we will be happy to assist you!
Module 2.5 Polyacetal Gear Rack Dimensions
- Part #: 28760100
- Module:2.5
- Dimension (b): 17mm
- Dimension (H): 13mm
- Dimension (h): 10.5mm
- Length (L): 250mm
- Weight: 58.2 Grams
- Part #: 28760100
- Module:2.5
- Dimension (b): 17mm
- Dimension (H): 13mm
- Dimension (h): 10.5mm
- Length (L): 250mm
- Weight: 58.2 Grams
