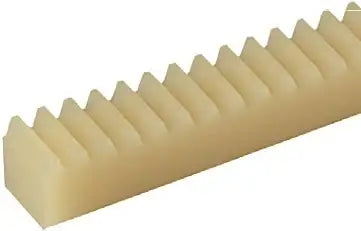

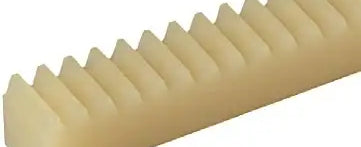

Module 2 Plastic Gear Rack (15.4X11X9) - Polyketon 250mm
Note:
Custom Cut to Length Chain Also Available
SKU: 28660101-RACK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 2 Plastic Gear Rack (15.4X11X9) - Polyketon 250mm Features
Module 2 Plastic Gear Rack (15.4X11X9) - Polyketon 250mm Specifications
Our module 2 plastic gear rack is dimensionally manufactured per DIN 867/ DIN 3972 standards 15.4X11X9, is made from high-quality polyketone material, and has a nominal length of 250mm. These gear racks are easily mounted in continuous lengths, especially with the use of our gear rack mounting aid! Polyketone is a lower-friction material that provides an extended lifespan even without lubrication; the material can also be used in abrasive and corrosive environments. Module 2 metric plastic gear racks feature a 20-degree pressure angle straight tooth design; we also supply the accompanying plastic spur gears! For additional information or to get a quote on our plastic gear racks or gears, contact our customer service team, and we will be happy to assist you!
Module 2 Polyketone Gear Rack Dimensions
- Part #: 28660101
- Module:2
- Dimension (b): 15.4mm
- Dimension (H): 11mm
- Dimension (h): 9mm
- Length (L): 250mm
- Weight: 39.3Grams
- Part #: 28660101
- Module:2
- Dimension (b): 15.4mm
- Dimension (H): 11mm
- Dimension (h): 9mm
- Length (L): 250mm
- Weight: 39.3Grams
