SAF520 Housing | SAF 520 Split Pillow Block Housing

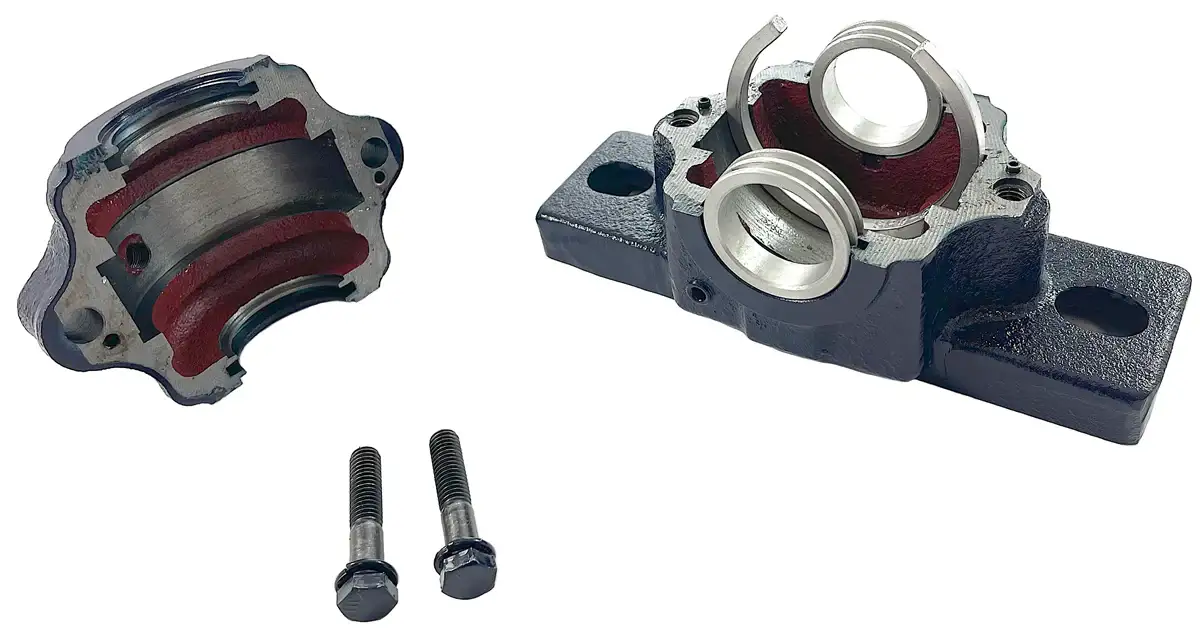

SAF 520 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a SAF520 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our SAF520 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. SAF520 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our SAF 520 housing, contact our customer support team, and we will be happy to assist you!

SAF 520 Housing Dimensions

• Housing #: SAF520
• Dimension (D): 180mm
• Dimension (a): 15"
• Dimension (b): 4-3/8"
• Dimension (c): 1-3/4"
• Dimension (h): 4-1/2"
• Dimension (W): 8-3/4"
• Dimension (M - max.): 13-1/8"
• Dimension (M - min.): 11-5/8"
• Dimension (n): -"
• Dimension (S): 7/8"
• Cap Bolt Size: 5/8-11
• Style: 1

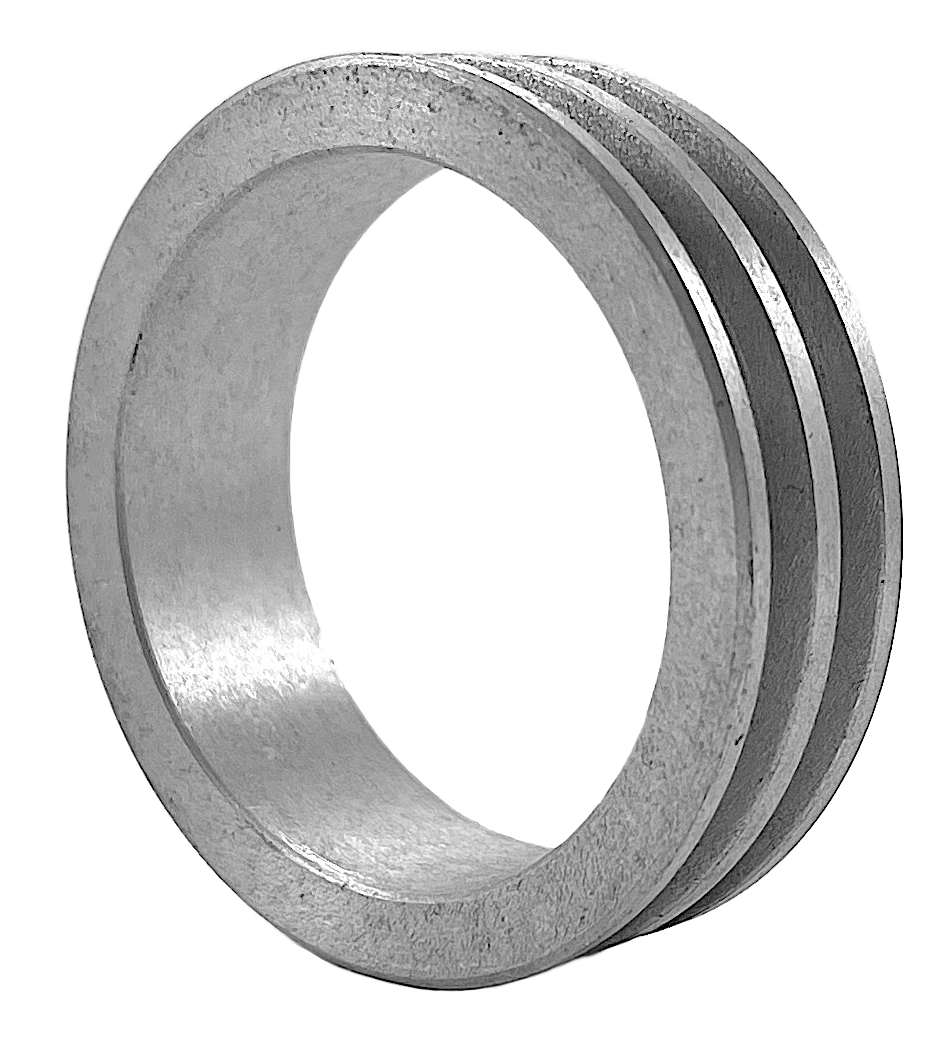

• Labyrinth Seal Ring: LER102

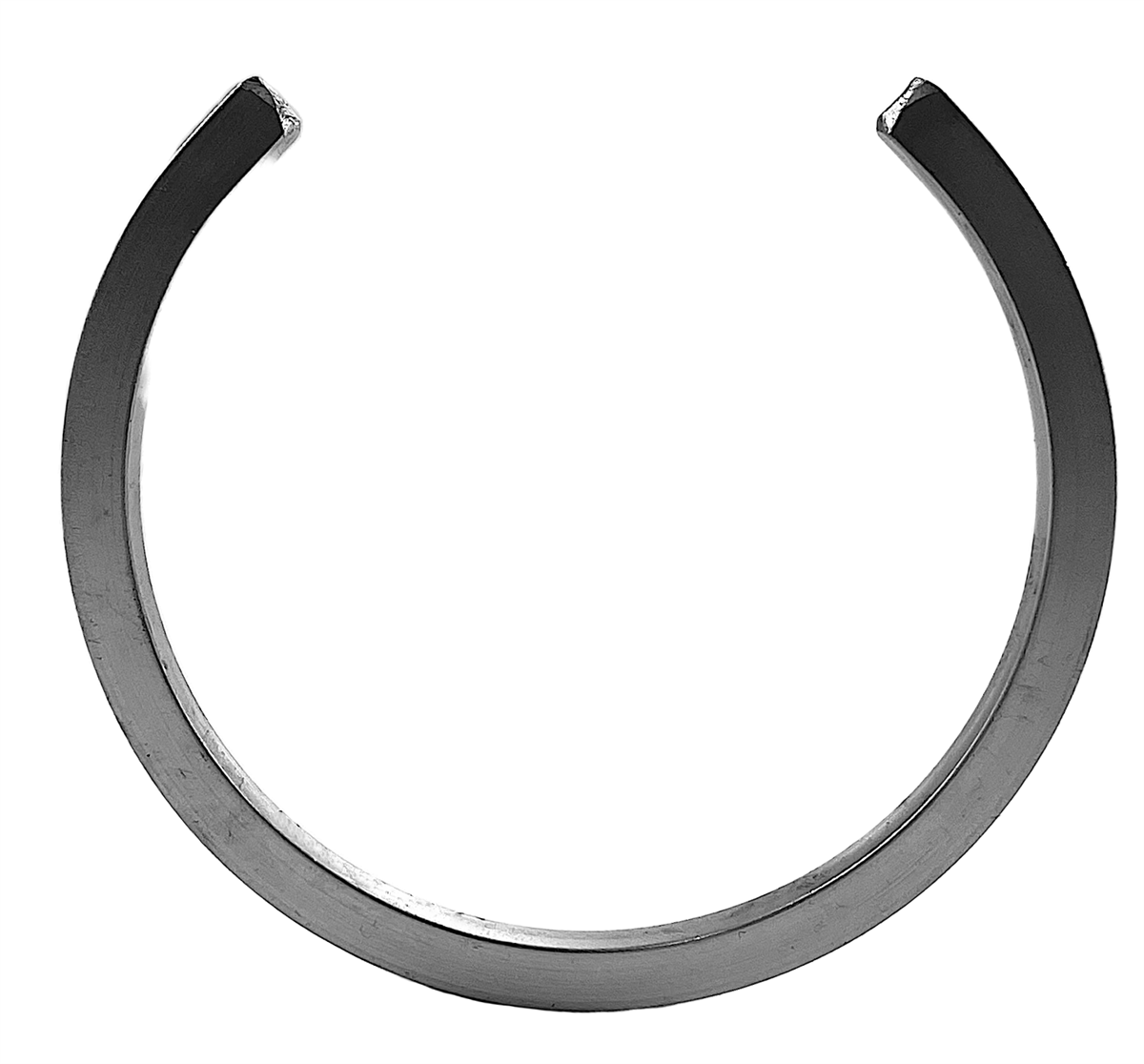

• Stabilizing Ring: SR20-17
• Weight (LBS): 49.60
