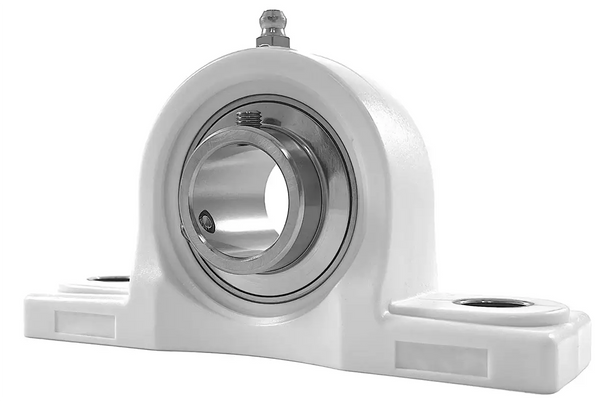

UCPPL210-30SS Bearing | Thermoplastic 1-7/8" Bearing

UCPPL210-30SS thermoplastic bearing is a two-bolt pillow block bearing with a 1-7/8" bore capable of operating in food-grade and wash-down applications. Were excited to offer a quality thermoplastic mounted bearing that is engineered and manufactured to perform within various industrial circumstances! What sets our UCPPL210-30SS bearing apart from others is the integrity of a specially formulated polymer housing that exserts strength and durability, along with solid stainless steel bushings moulded directly within the mounting holes of the housing for added mounting capacity and rigidity. But no premium bearing can be complete without a quality insert; the 1-7/8" bearing that comes standard with this unit meets C3 precision standards and is made of top-grade stainless steel materials for the best combination of performance, precision, and durability. Combining these features creates a high-strength and performance-based thermoplastic UCPPL210-30SS bearing unit. More specifically, UCPPL210-30SS bearings are found in a broad range of applications such as; packaging, food, beverage, wash-down, corrosive, and more! This bearing is dimensionally standard, which means it will directly interchange with most other brands. Finally, UCPPL210-30SS bearings utilize two strategically placed set-screws for securing a 1-7/8" shaft; the set-screw method of securing onto a shaft provides the benefits of easy placement and easy installation/ uninstall of the unit. For additional information or to get a quote on our premium UCPPL210-30SS bearing, contact our customer support team, and we will be happy to assist you!

UCPPL210-30SS Bearing Dimensions

• Part #: UCPPL210-30SS
• Bearing I.D. (d): 1-7/8"
• Dimension (h): 2-1/4"
• Dimension (a): 8-1/8"
• Dimension (e): 6-1/4"
• Dimension (b): 2-3/8"
• Dimension (S1): 43/64"
• Dimension (S2): 25/32"
• Dimension (g): 29/32"
• Dimension (w): 4-31/64"
• Dimension (Bi): 2.032"
• Dimension (n): 0.748"
• Bolt Size: 5/8
• Insert Bearing #: SSUC210-30
• Housing #: PPL210
• Weight (LBS): 2.65
