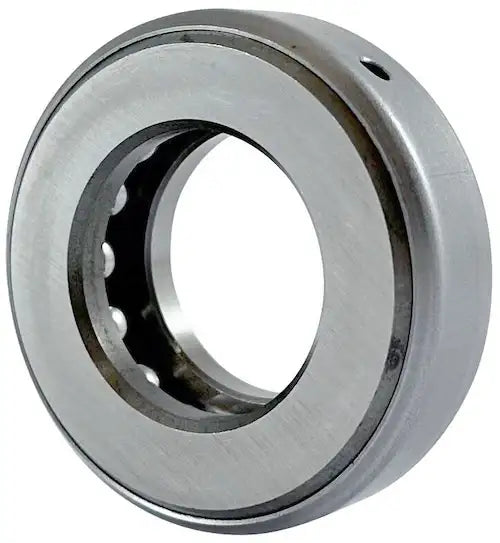

D14 Thrust Ball Bearing | D14 Thrust Bearing - 1-5/16" Bore

The D14 thrust bearing is a single direction, flat seat design thrust ball bearing with a 1-5/16" bore. What separates this bearing from some of the other D14 bearings on the market is its precision-made components, 52100 thru-hardened steel rings and balls, and high-quality, low-carbon steel band. This bearing is also supplied with light oil lubrication from the factory and features an oil hole in the band for relubricating. Thrust ball bearings are rotary bearings designed to support a predominately axial load. D14 bearings are composed of bearing balls that are supported in a ring and allow for use in applications with low thrust and little axial load. For additional information or to get a quote on D14 thrust ball bearings, contact our customer support team, and we will be happy to assist you!

D14 Thrust Bearing Dimensions

• Bearing Part #: 1.316
• Dimension (A): 1.344" +0.002/ -0.000
• Dimension (A1): 2.344" +0.010/ -0.010
• Dimension (B): .625" +0.015/ -0.015
• Dimension (H): 18" +0.005/ -0.005
• Number of Balls: 18
• Static Load Rating: 15700 LBS
• Dynamic Load Rating: 7200 LBS
• Speed Limit (Oil Lubrication): 3000 RPM
• Weight: .397 LBS
