Power Transmission > Bearings > Ball Bearings > Thrust Ball Bearings

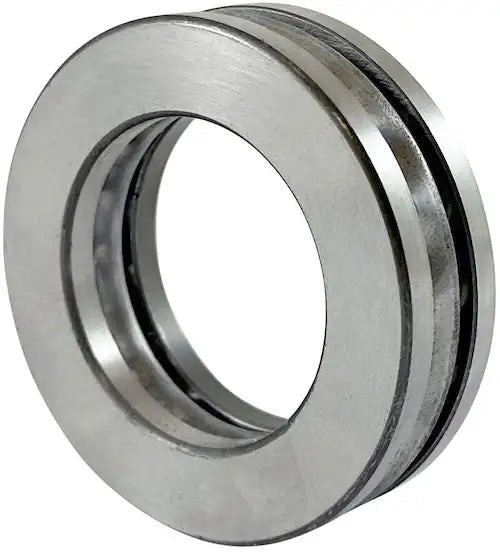

925 Thrust Ball Bearing 125mm
Note:
Custom Cut to Length Chain Also Available
SKU: 2783-925-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
925 Thrust Ball Bearing 125mm Features
925 Thrust Ball Bearing 125mm Specifications
The 925 thrust bearing is a single direction, thrust ball bearing with a 125mm bore and grooved races. What separates this bearing from some of the other 925 bearings on the market is its precision-made components, 52100 thru-hardened steel rings and balls, and high-quality, low-carbon steel band. This bearing is also supplied with light oil lubrication from the factory and features an oil hole in the band for relubricating. Thrust ball bearings are rotary bearings designed to support a predominately axial load. 925 bearings are composed of bearing balls that are supported in a ring and allow for use in applications with low thrust and little axial load. For additional information or to get a quote on 925 thrust ball bearings, contact our customer support team, and we will be happy to assist you!
925 Thrust Bearing Dimensions
- Bearing Part #: 925
- Dimension (A): 125mm
- Dimension (A): 4.9213"
- Dimension (A1): 4.929"
- Dimension (B): 175mm
- Dimension (B): 6.890"
- Dimension (H): 46.5mm
- Dimension (H): 1.831"
- Number of Balls: 20
- Ball Size: 0.813"
- Static Load Rating: 91900 LBS
- Dynamic Load Rating: 41800 LBS
- Speed Limit: 1600 RPM
- Weight: 8.30 LBS
- Bearing Part #: 925
- Dimension (A): 125mm
- Dimension (A): 4.9213"
- Dimension (A1): 4.929"
- Dimension (B): 175mm
- Dimension (B): 6.890"
- Dimension (H): 46.5mm
- Dimension (H): 1.831"
- Number of Balls: 20
- Ball Size: 0.813"
- Static Load Rating: 91900 LBS
- Dynamic Load Rating: 41800 LBS
- Speed Limit: 1600 RPM
- Weight: 8.30 LBS
