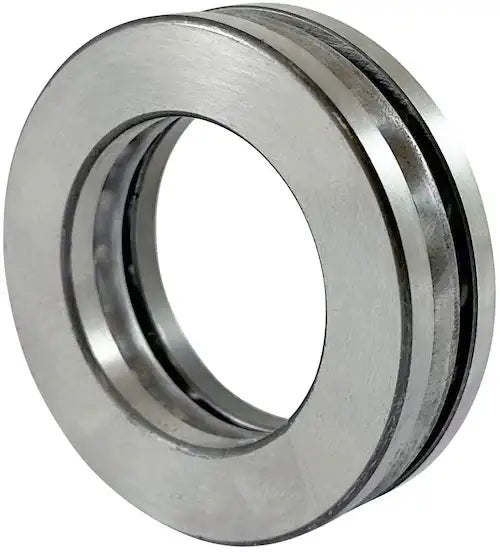

904 Thrust Ball Bearing | 904 Thrust Bearing - 20mm

The 904 thrust bearing is a single direction, thrust ball bearing with a 20mm bore and grooved races. What separates this bearing from some of the other 904 bearings on the market is its precision-made components, 52100 thru-hardened steel rings and balls, and high-quality, low-carbon steel band. This bearing is also supplied with light oil lubrication from the factory and features an oil hole in the band for relubricating. Thrust ball bearings are rotary bearings designed to support a predominately axial load. 904 bearings are composed of bearing balls that are supported in a ring and allow for use in applications with low thrust and little axial load. For additional information or to get a quote on 904 thrust ball bearings, contact our customer support team, and we will be happy to assist you!

904 Thrust Bearing Dimensions

• Bearing Part #: 904
• Dimension (A): 20mm
• Dimension (A): 0.7874"
• Dimension (A1): 0.795"
• Dimension (B): 40mm
• Dimension (B): 1.575"
• Dimension (H): 14mm
• Dimension (H): 0.551"
• Number of Balls: 10
• Ball Size: 0.281"
• Static Load Rating: 6100 LBS
• Dynamic Load Rating: 4900 LBS
• Speed Limit: 6400 RPM
• Weight: 0.20 LBS
