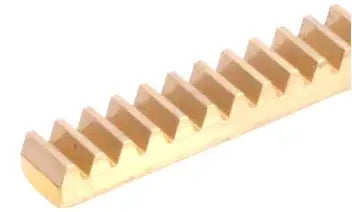

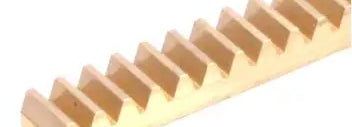

Module 1 Brass Gear Rack (10X10X9) - 250mm
Note:
Custom Cut to Length Chain Also Available
SKU: 26360300-RACK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 1 Brass Gear Rack (10X10X9) - 250mm Features
Module 1 Brass Gear Rack (10X10X9) - 250mm Specifications
Our module 1 brass gear rack is 10mm X 10mm X 9mm dimensionally and 250mm long. This gear rack has the unique capability of operating in abrasive and corrosive environments and has excellent machinability. What sets our module 3 brass gear rack apart is premium Ms58 brass material, which is manufactured using an overhead milling cutter. The result is a precise 20-degree pressure angle straight tooth profile for optimal performance. It is noteworthy that dimensions H and H have an undercut tolerance of -0.2mm. Additionally, our module 1 brass gear rack conforms with DIN dimensional standards for direct interchangeability and perfect operation with module 1 spur gears. For additional information or a quote on brass gear racks or spur gears, contact our customer service team, and we will be happy to assist you!
Module 1 Brass Gear Rack Dimensions
- Part #: 26360300
- Module:1
- Dimension (b): 10mm
- Dimension (H): 10mm
- Dimension (h): 9.0mm
- Length (L): 250mm
- Weight: 184 Grams
- Part #: 26360300
- Module:1
- Dimension (b): 10mm
- Dimension (H): 10mm
- Dimension (h): 9.0mm
- Length (L): 250mm
- Weight: 184 Grams
