Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > 25 Chain Sprockets > #25 B-Hub Sprockets
25B17 Sprocket - ANSI 25B17 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: 25B17-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
25B17 Sprocket - ANSI 25B17 Sprocket Features
25B17 Sprocket - ANSI 25B17 Sprocket Specifications

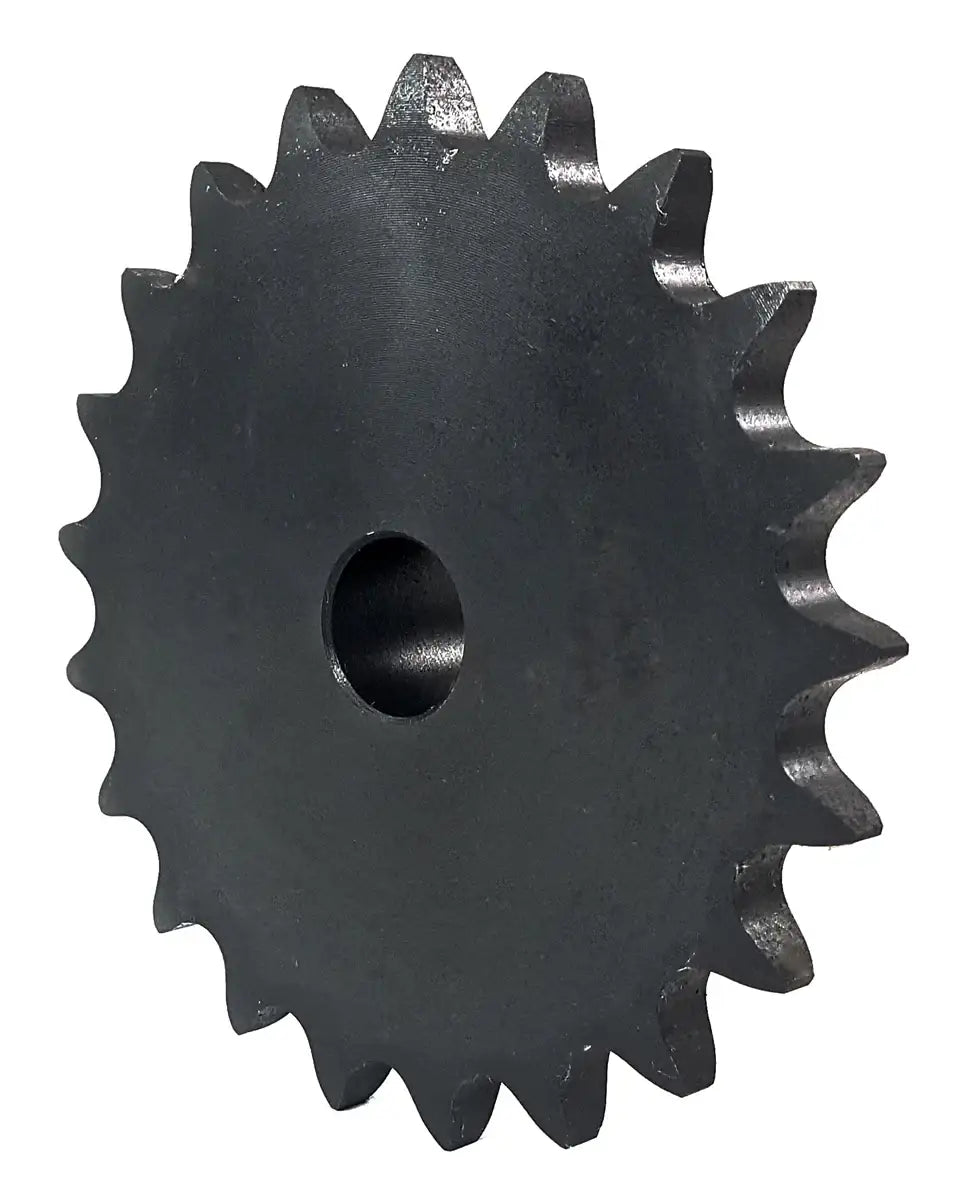

This 25B17 sprocket is a durable, high quality, and precision sprocket with hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #25 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 25B17 sprockets with a stock bore comes with the standard 1/4" ID hole with no keyway or set screws and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"
25B17 Sprocket Dimensions
- Sprocket Size: 25B17
- Tooth Count: 17
- Hub Style: B
- Outside Diameter (O.D): 1.487"
- Stock Bore: 1/4"
- Recommended Maximum Bore: 5/8"
- Hub Diameter: 1-1/32"
- Length Thru Bore: 1/2"
- Sprocket Weight: 0.14 LBS
- Common Interchanges: 25B17H, H25B17, 25B17-SB
Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"
- Sprocket Size: 25B17
- Tooth Count: 17
- Hub Style: B
- Outside Diameter (O.D): 1.487"
- Stock Bore: 1/4"
- Recommended Maximum Bore: 5/8"
- Hub Diameter: 1-1/32"
- Length Thru Bore: 1/2"
- Sprocket Weight: 0.14 LBS
- Common Interchanges: 25B17H, H25B17, 25B17-SB
