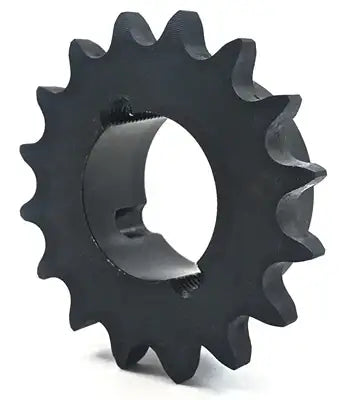

24BTB27H Sprocket
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: 24BTB27H-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Buy it With:
24BTB27H Sprocket Description/Features
24BTB27H Sprocket Specifications
This 24BTB27H sprocket is a durable, high quality, and precision taper bushed sprocket with 27 teeth that is manufactured out of high-quality steel. It uses a 3020 taper bushing and is manufactured in accordance with ISO standards, which ensures proper contact between the 24B roller chain and sprocket thus preventing premature wear or breakage. The benefit of using a 24BTB27H taper bushed style sprocket is that a bushing has a broad range of bore sizes and are typically in-stock. For more information or to get a quote please contact us and we will be happy to assist you.
24BTB27H Sprocket Dimensions
- Size: 24BTB27H
- Tooth Count: 27
- Pitch Diameter: 328.19mm
- Bushing Size: 3020
- Maximum Bushing Bore: 76.20mm
- Dimension (L): 50.80mm
- Dimension (C): 133.35mm
- Sprocket Weight: 13.50 kg
- Size: 24BTB27H
- Tooth Count: 27
- Pitch Diameter: 328.19mm
- Bushing Size: 3020
- Maximum Bushing Bore: 76.20mm
- Dimension (L): 50.80mm
- Dimension (C): 133.35mm
- Sprocket Weight: 13.50 kg
