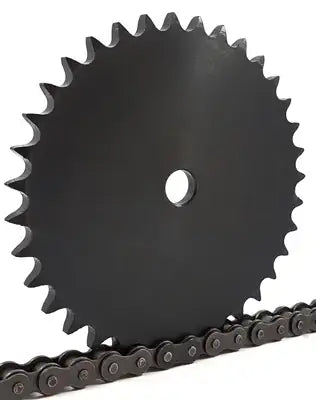

24A56 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: 24A56-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
24A56 Sprocket Features
24A56 Sprocket Specifications
This 24A56 sprocket is a durable, high quality, and precision metric roller sprocket with 56 teeth. Something that is notable about this 24A56 sprocket is that it fully meets all ISO Standards, which insures proper contact between the 24B roller chain and sprocket thus preventing premature wear or breakage. This 24A56 sprocket has a 30mm stock bore but this can be re-sized upon request. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. Fore more information or to get a formal quote please contact us and we will be happy to assist you.
Dimensions:
- Sprocket Size: 24A56
- Tooth Count: 56
- Pitch Diameter (d0): 679.5mm
- Outside Diameter (dk): 694mm
- Stock Bore (d1): 30mm
- Sprocket Thickness (bf1): mm
- Sprocket Weight: 60KG
- Sprocket Size: 24A56
- Tooth Count: 56
- Pitch Diameter (d0): 679.5mm
- Outside Diameter (dk): 694mm
- Stock Bore (d1): 30mm
- Sprocket Thickness (bf1): mm
- Sprocket Weight: 60KG
