24A10 Sprocket
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.

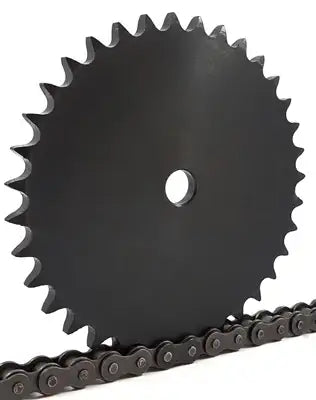

- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: 24A10-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
24A10 Sprocket Description/Features
24A10 Sprocket Specifications
This 24A10 sprocket is a durable, high quality, and precision metric roller sprocket with 10 teeth. Something that is notable about this 24A10 sprocket is that it fully meets all ISO Standards, which insures proper contact between the 24B roller chain and sprocket thus preventing premature wear or breakage. This 24A10 sprocket has a 20mm stock bore but this can be re-sized upon request. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. Fore more information or to get a formal quote please contact us and we will be happy to assist you.
Dimensions:
Dimensions:
- Sprocket Size: 24A10
- Tooth Count: 10
- Pitch Diameter (d0): 123.3mm
- Outside Diameter (dk):138 mm
- Stock Bore (d1): 20mm
- Sprocket Thickness (bf1): mm
- Sprocket Weight: 2.5KG
- Sprocket Size: 24A10
- Tooth Count: 10
- Pitch Diameter (d0): 123.3mm
- Outside Diameter (dk):138 mm
- Stock Bore (d1): 20mm
- Sprocket Thickness (bf1): mm
- Sprocket Weight: 2.5KG
