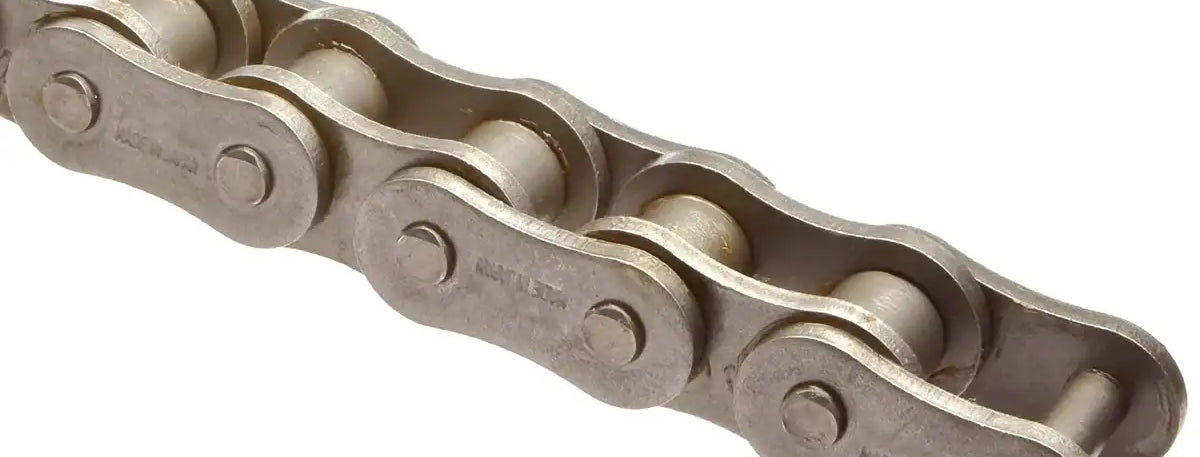

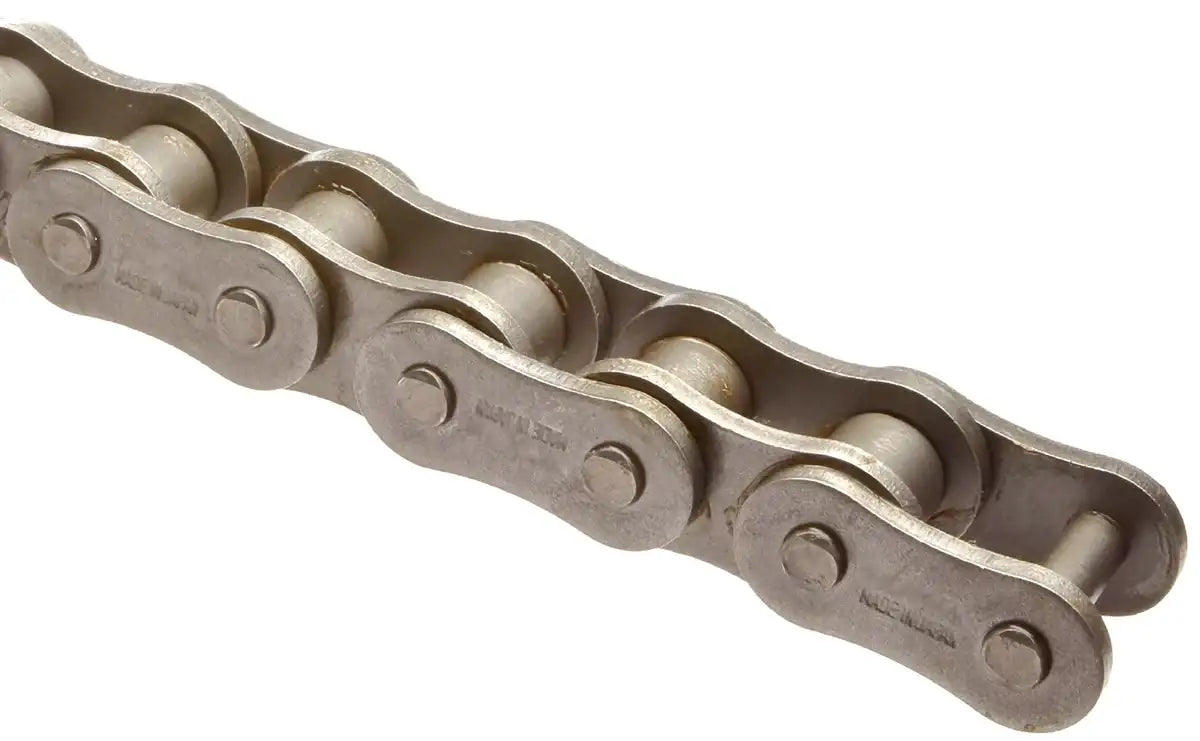

Premium 240HKSR Roller Chain - 10ft Box

Name: Premium 240HKSR Roller Chain - 10ft Box
Brand: USA ROLLER CHAIN
SKU: 240HKSR-ROLLER-CHAIN
Availability: InStock

SKU: 240HKSR-ROLLER-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Premium 240HKSR Roller Chain - 10ft Box Description/Features

Premium 240HKSR Roller Chain - 10ft Box Specifications

#240HKSR roller chain is apart of the Super High Strength HKSR series premium heavy roller chains. This roller chain is manufactured using high-quality precision components to increase the working life, fatigue, and strength of the roller chain while still remaining within the dimensions of standard ANSI heavy roller chain. HKSR roller chains feature enlarged and thickened plates, improved machined parts accuracy and assembly, solid bushings and solid rollers. These features further increase the working life, strength, and efficiency over the HK series chains throughout the entire low to high speed application spectrum. Additionally compared to standard roller chains, HKSR series chains are higher in maximum horsepower rating by around 30% in a medium to low speed application. #240HKSR chain also has a much better performance than other chains in applications where there are high shock loads, frequent starting and stopping, and in relatively high-speed applications such as; power shovels, trenchers, trucks, cranes, mixers, conveyors, elevators, stackers, and more. If you're needing a large quantity of #240HKSR roller chain or need any additional information please contact us and we will be happy to assist you!

Dimensions:

Chain #: 240HKSR
Pitch (P): 3.000"
Roller Diameter (D): 1.875"
Width Between Plates (W): 1.875"
Link Plate Height (H): 2.843"
Side Plate Thickness (T): 0.500"
Pin Diameter (E): 0.937"
Pin Length (L): 4.252"
Average Tensile Strength: 206,800 LBS
Maximum Recommended Working Load: 34,980 LBS
Weight Per Foot: 19.93 LBS
