7226B Bearing | 7226B Angular Contact Bearing - 130x230x40

Note: Custom Cut to Length Chain Also Available
SKU: 2278BRG-7226B
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714373583215" , "metafield_value":""}]
7226B Bearing | 7226B Angular Contact Bearing - 130x230x40 Features
7226B Bearing | 7226B Angular Contact Bearing - 130x230x40 Specifications

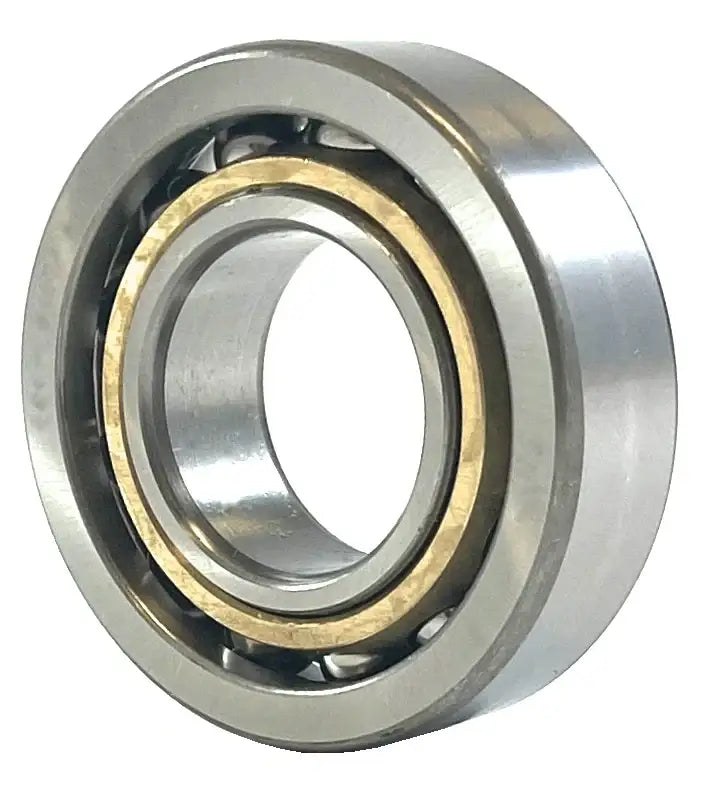

This 7226-B angular contact bearing is a high-precision 45-degree 130x230x40 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer race. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7226-B bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 5 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7226-B angular contact bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team and we will be happy to assist you!

7226-B Angular Contact Bearing Dimensions

7226B Bearing | 7226B Angular Contact Bearing - 130x230x40
  • Bearing Size:7226B
  • Dimension (d): 130mm
  • Dimension (D): 230mm
  • Dimension (B): 40mm
  • Dynamic Load Rating: 39800 LBS
  • Static Load Rating: 40470 LBS
  • Limiting Speed (Grease): 2400 RPM
  • Limiting Speed (OIL): 3200 RPM
  • Weight: LBS


  • Bearing Size:7226B
  • Dimension (d): 130mm
  • Dimension (D): 230mm
  • Dimension (B): 40mm
  • Dynamic Load Rating: 39800 LBS
  • Static Load Rating: 40470 LBS
  • Limiting Speed (Grease): 2400 RPM
  • Limiting Speed (OIL): 3200 RPM
  • Weight: LBS
