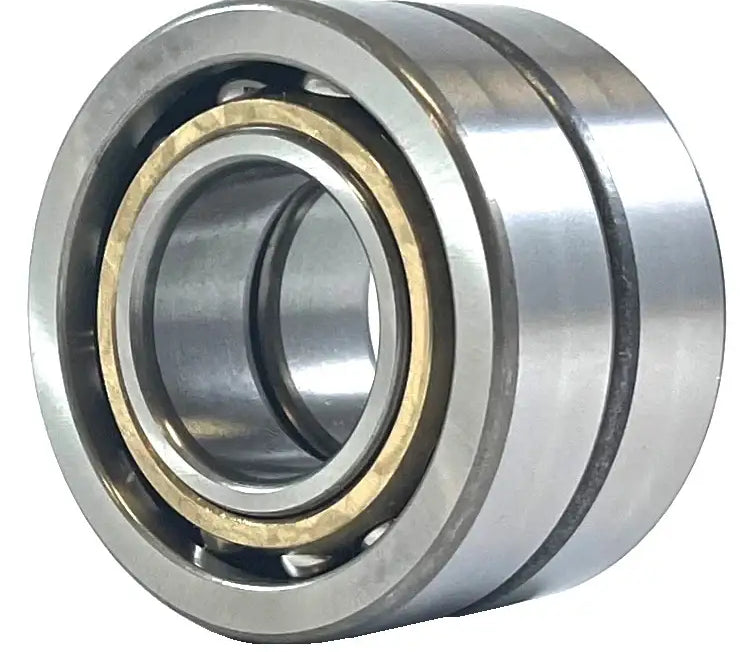

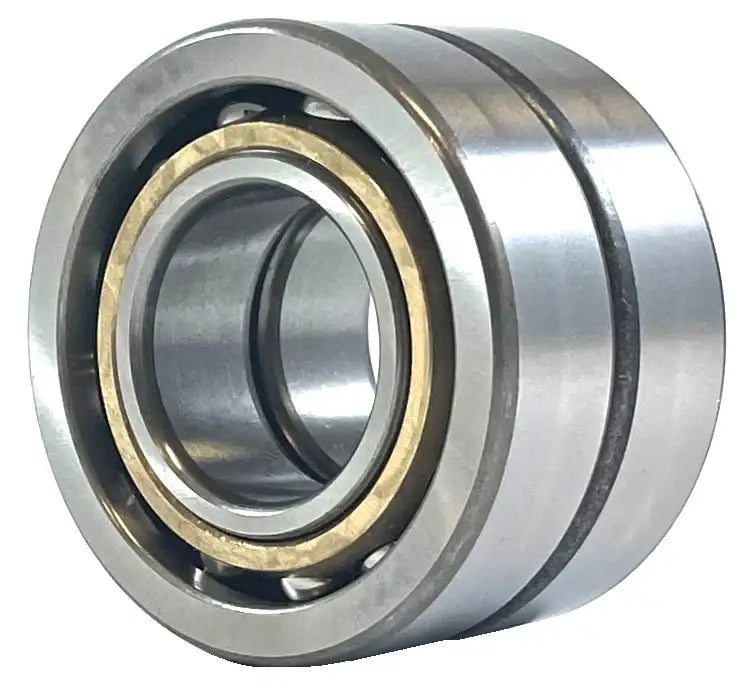

7221BUA Angular Contact Bearing Pair | 7221BUA - 105x190x72
This 7221-BUA Duplex bearing is a high-precision 45-degree 105x190x72 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer race. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7221-BUA Duplex bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 7 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7221-BUA Duplex bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team and we will be happy to assist you!
7221-BUA Duplex Bearing Dimensions

- Bearing Size: 7221-BUA
- Dimension (d): 105mm
- Dimension (D): 190mm
- Dimension (B): 72mm
- Dynamic Load Rating: 49460 LBS
- Static Load Rating: 54180 LBS
- Limiting Speed (Grease): 2300 RPM
- Limiting Speed (OIL): 3100 RPM
- Bearing Size: 7221-BUA
- Dimension (d): 105mm
- Dimension (D): 190mm
- Dimension (B): 72mm
- Dynamic Load Rating: 49460 LBS
- Static Load Rating: 54180 LBS
- Limiting Speed (Grease): 2300 RPM
- Limiting Speed (OIL): 3100 RPM
