7205BUA Angular Contact Bearing Pair | 7205BUA - 25x52x30
Note:
Custom Cut to Length Chain Also Available
SKU: 2278BRG-7205BUA
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
7205BUA Angular Contact Bearing Pair | 7205BUA - 25x52x30 Features
7205BUA Angular Contact Bearing Pair | 7205BUA - 25x52x30 Specifications

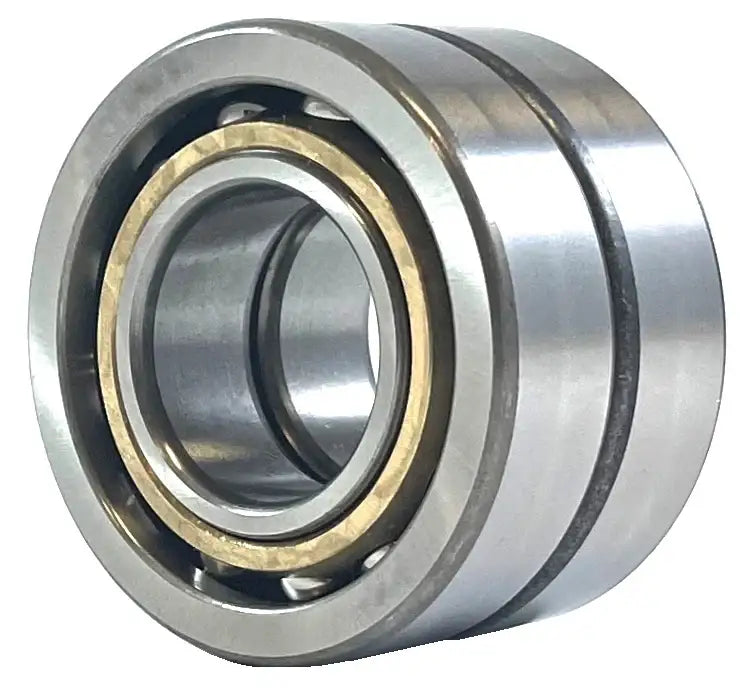

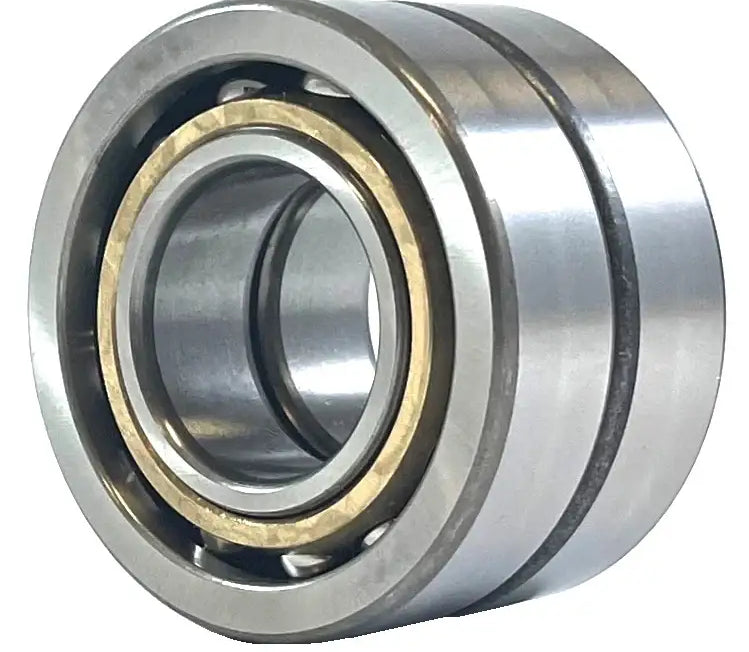

This 7205-BUA bearing is a high-precision 45-degree 25x52x30 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer races. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7205-BUA bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 5 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7205-BUA bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team, and we will be happy to assist you!
7205-BUA Bearing Dimensions
- Bearing Size:7205-BUA
- Dimension (d): 25mm
- Dimension (D): 52mm
- Dimension (B): 30mm
- Dynamic Load Rating: 5110 LBS
- Static Load Rating: 3920 LBS
- Limiting Speed (Grease): 9200 RPM
- Limiting Speed (OIL): 12000 RPM
- Bearing Size:7205-BUA
- Dimension (d): 25mm
- Dimension (D): 52mm
- Dimension (B): 30mm
- Dynamic Load Rating: 5110 LBS
- Static Load Rating: 3920 LBS
- Limiting Speed (Grease): 9200 RPM
- Limiting Speed (OIL): 12000 RPM
