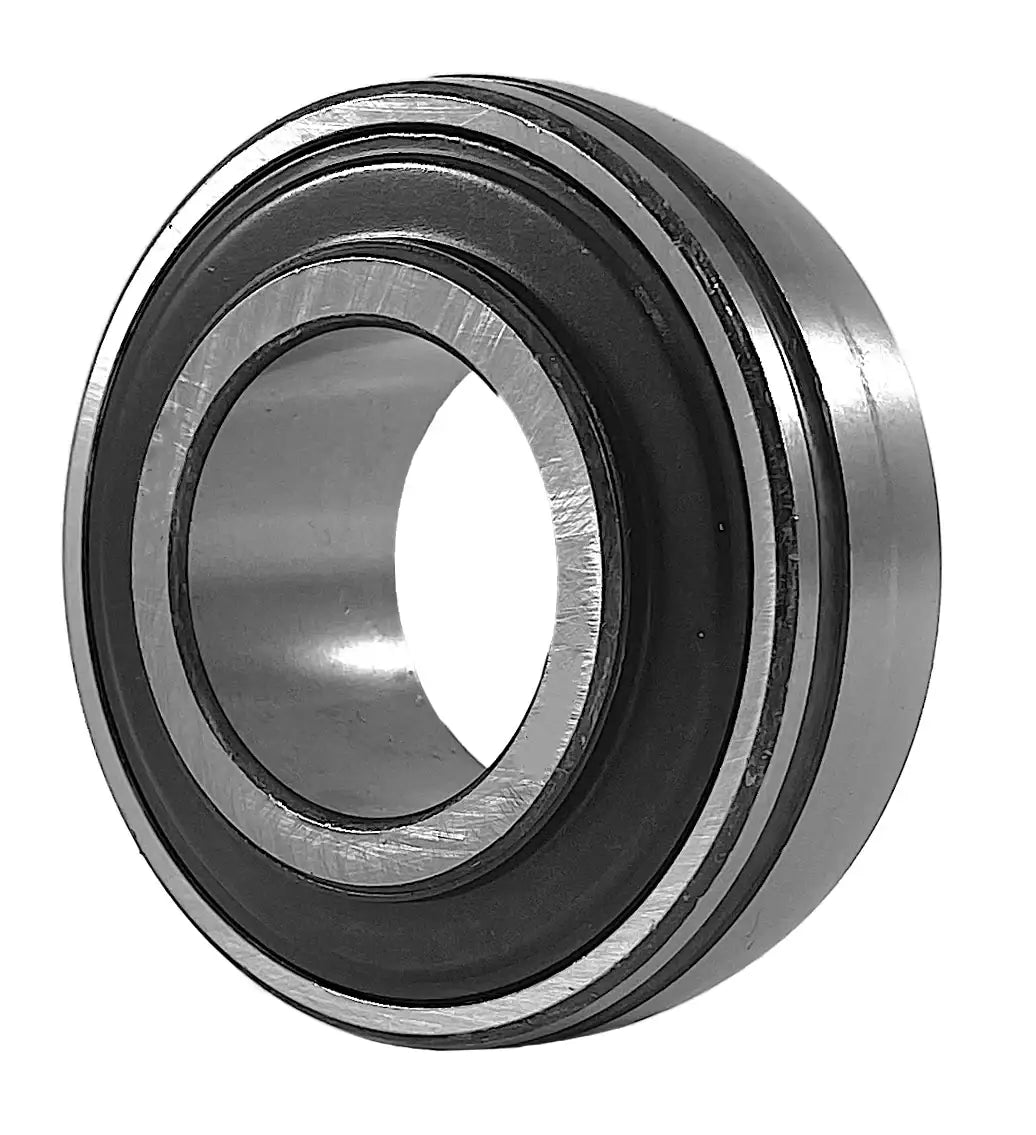

UK209-158 Insert Bearing | 1-5/8" Tapered Adapter Insert Bearing
SKU: 2278-UK-209-158-BEARING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
UK209-158 Insert Bearing | 1-5/8" Tapered Adapter Insert Bearing Description/Features
UK209-158 Insert Bearing | 1-5/8" Tapered Adapter Insert Bearing Specifications
UK209-158 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 1-5/8" bore. Our UK209-158 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK209-158 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK209-158 bearings, contact our customer service and, we will be happy to assist you!
UK209-158 Bearing Dimensions
- Part #: UK 209
- Shaft Diameter (d): 1-5/8"
- Dimension (d): 1.7717"
- Dimension (D): 3.3465"
- Dimension (Bi): 1.1811"
- Dimension (Be): 0.8661"
- Dimension (T): 0.2559"
- Dynamic Load Rating (LBS): 7,160
- Static Load Rating (LBS): 4,676
- Fits Housing Size: 210 / X09
- Weight (LBS): 1.5
- Part #: UK 209
- Shaft Diameter (d): 1-5/8"
- Dimension (d): 1.7717"
- Dimension (D): 3.3465"
- Dimension (Bi): 1.1811"
- Dimension (Be): 0.8661"
- Dimension (T): 0.2559"
- Dynamic Load Rating (LBS): 7,160
- Static Load Rating (LBS): 4,676
- Fits Housing Size: 210 / X09
- Weight (LBS): 1.5
