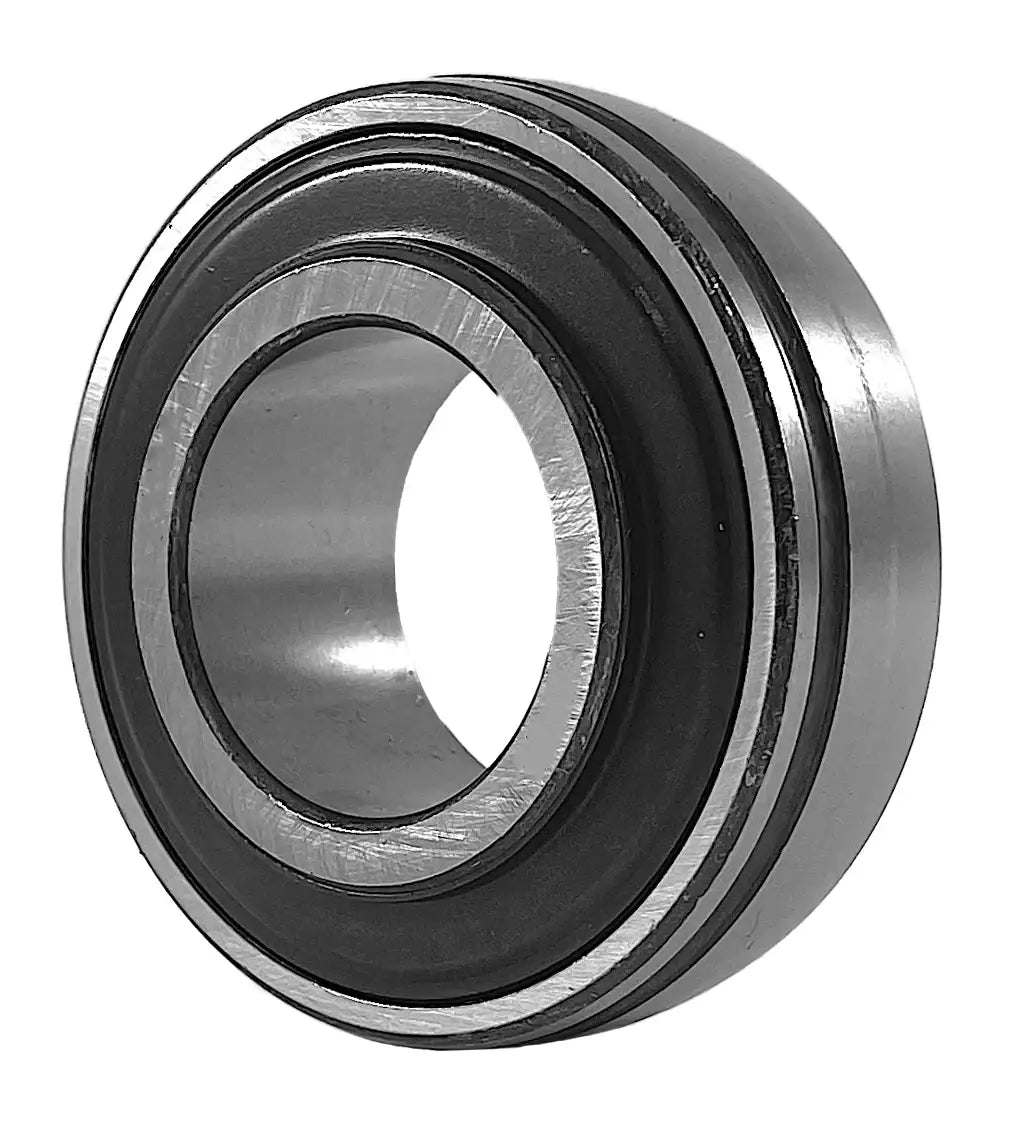

UK207-30 Insert Bearing | 30mm Tapered Adapter Insert Bearing

UK207-30 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 30mm bore. Our UK207-30 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK207-30 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK207-30 bearings, contact our customer service and, we will be happy to assist you!

UK207-30 Bearing Dimensions

• Part #: UK 207
• Shaft Diameter (d): 30mm
• Dimension (d): 35.0mm
• Dimension (D): 72.0mm
• Dimension (Bi): 28.0mm
• Dimension (Be): 20.0mm
• Dimension (T): 5.8mm
• Dynamic Load Rating (kN): 25.69
• Static Load Rating (kN): 15.56
• Fits Housing Size: 208 / X07
• Weight (kg): 0.5
